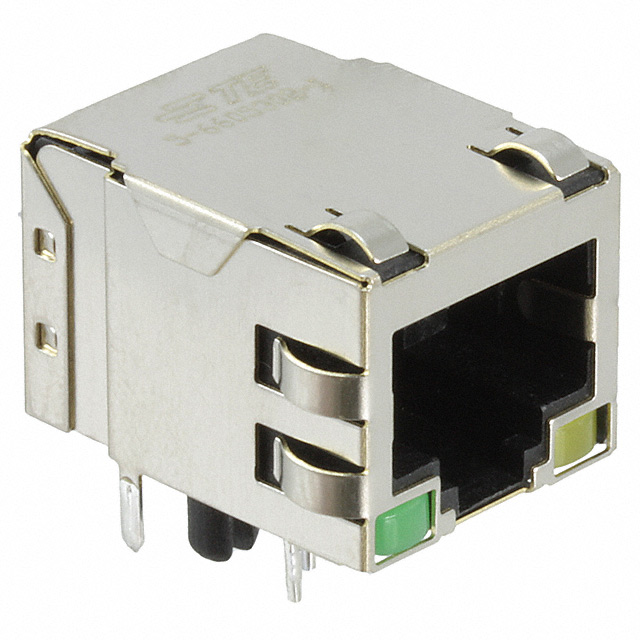

5-6605308-1图片1
5-6605308-1图片2
5-6605308-1图片3
5-6605308-1图片4
5-6605308-1图片5
5-6605308-1概述

Conn RJ-45F 8POS 2.54mm Solder RA Thru-Hole 12 Terminal 1Port

1 端口 RJ45通孔 10/100 Base-T,AutoMDIX


得捷:
CONN JACK 1PORT 100 BASE-T


艾睿:
Have a telecom or phone line? This rj-45 5-6605308-1 telephone and telecom connector manufactured from TRP Connector will make a solid connection. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a female type gender. Its pitch is 2.54 mm. This connector has a single port. 5-6605308-1 is housed in polyethylene terephthalate. This part has an operating temperature of 0 to 70 °C. This product is 18.41 mm long, 15.24 mm tall and 21.59 mm deep. It uses the solder termination method.


Verical:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port


5-6605308-1中文资料参数规格
技术参数

触点数 8

极性 Female

排数 1

工作温度Max 70 ℃

工作温度Min 0 ℃

封装参数

安装方式 Through Hole

外形尺寸

高度 15.24 mm

物理参数

触点材质 Phosphor Bronze

工作温度 0℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tray

制造应用 10/100 Base-T,AutoMDIX

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买5-6605308-1
型号: 5-6605308-1
制造商: TRP Connector
描述:Conn RJ-45F 8POS 2.54mm Solder RA Thru-Hole 12 Terminal 1Port
