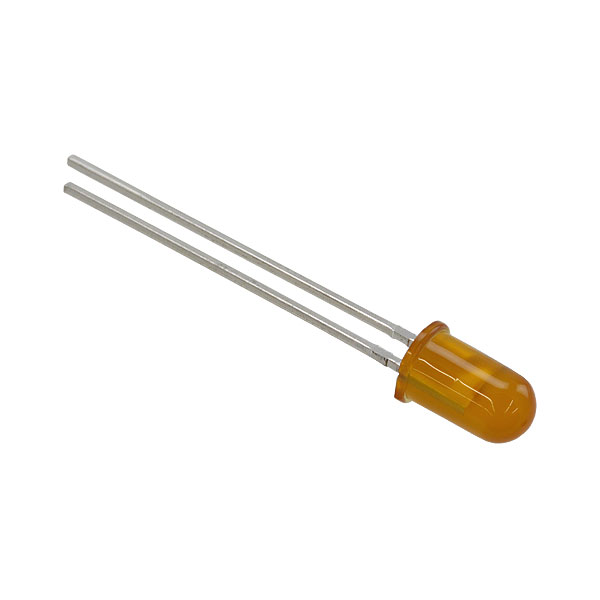

LED Uni-Color Yellow 583nm 2Pin T-1 3/4 Bulk
Yellow Indication - Discrete 10V Radial
得捷: LED YELLOW DIFFUSED 5MM T/H
艾睿: LED Uni-Color Yellow 583nm 2-Pin T-1 3/4 Bulk
Verical: LED Uni-Color Yellow 583nm 2-Pin T-1 3/4 Bulk
正向电压 10 V
发光强度 8 mcd
视角 60°
峰值波长 583 nm
测试电流 10 mA
正向电流 15 mA
正向电压Max 7.5 V
正向电流Max 15 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 T-1
高度 9.95 mm
颜色 Yellow
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 无铅
数据手册
