SMT Prcei-dip 540 系列这些瑞士 Preci-dip PLCC 540 系列插座带有与印刷电路板连接的 SMT 端接，IC 封装的方形尺寸符合 JEDEC MO-047，矩形尺寸 32 符合 JEDEC MO-52，薄型。 胶带和卷轴套件的制造商部件号以 TR 结尾 每个触点的最小触点压力为 1.5 N 机械寿命最短为 50 个周期 最大电容 2 pF 最大共面 SMD 端接 0.1 mm ### 标准UL94V-0### IC 插座-PLCC（塑料引线芯片载体）
SMT Prcei-dip 540 系列

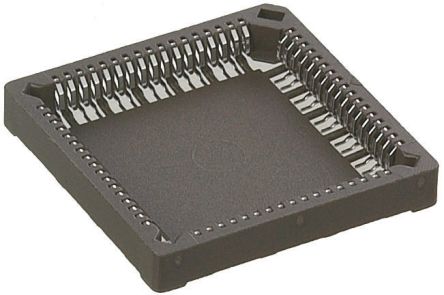

这些瑞士 Preci-dip PLCC 540 系列插座带有与印刷电路板连接的 SMT 端接，IC 封装的方形尺寸符合 JEDEC MO-047，矩形尺寸 32 符合 JEDEC MO-52，薄型。
胶带和卷轴套件的制造商部件号以 TR 结尾
每个触点的最小触点压力为 1.5 N
机械寿命最短为 50 个周期
最大电容 2 pF
最大共面 SMD 端接 0.1 mm
### 标准
UL94V-0
欧时:

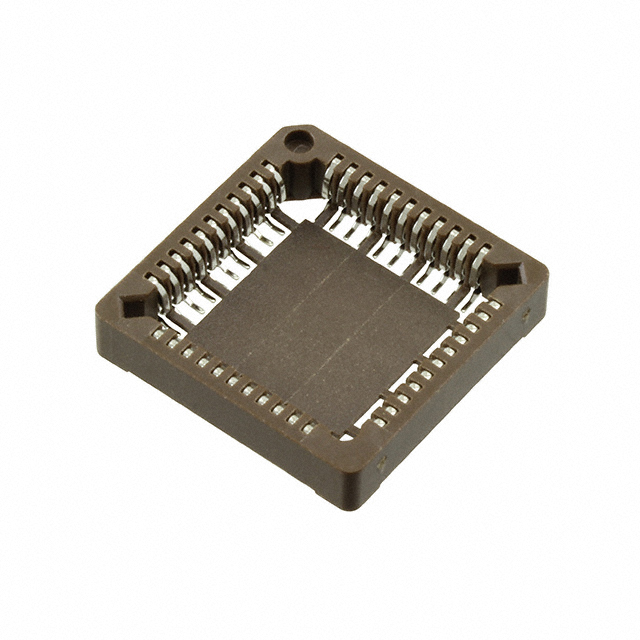

Preci-Dip 44 针 1.27mm 节距 SMT 母 PLCC 针座 540-88-044-17-400-TR, 锡 电镀触点, 1A
得捷:
CONN SOCKET PLCC 44POS TIN
艾睿:
Cleanly connect multiple wires together by using this plcc socket 540-88-044-17-400-TR connector socket from Precidip. This SKT connector&s;s 44 contacts that are made out of phosphor bronze and plated with tin. It has a straight body orientation. Its pitch is 1.27 mm. It has a socket type gender. It has a maximum voltage rating of 150 VDC|100VAC. 540-88-044-17-400-TR is housed in polyphenylene sulfide. This device has a maximum current rating of 1 A. It is insulated with polyphenylene sulfide. This product is 22.42 mm long, 4.6 mm tall and 22.42 mm deep. This connector socket has an operating temperature of -55 to 125 °C. It uses the solder termination method.
安富利:
Conn PLCC Socket SKT 44 POS 1.27mm Solder ST SMD T/R
Verical:
Conn PLCC Socket SKT 44 POS 1.27mm Solder ST SMD T/R
儒卓力:
**44P PLCC SOCKET SMD T/R **
