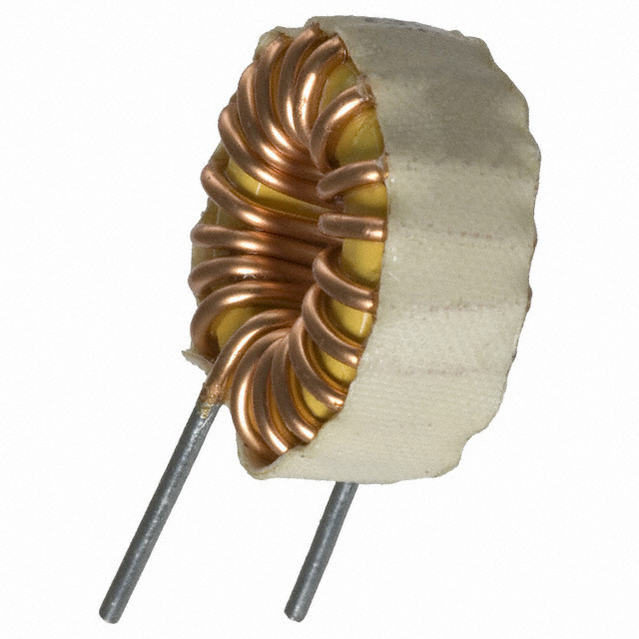

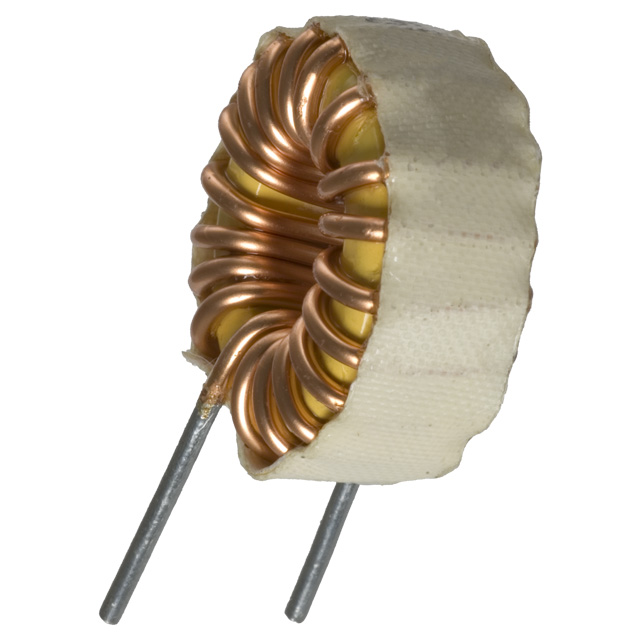

5716-RC

5716-RC图片1
5716-RC图片2
5716-RC图片3
5716-RC图片4
5716-RC图片5
5716-RC图片6
5716-RC图片7
5716-RC图片8
5716-RC图片9
5716-RC图片10
5716-RC概述

高电流环形电感 High Current Toroid Inductors

125 µH 无屏蔽 环形 器 7.75 A 32 毫欧最大 径向,垂直(开放式)


得捷:
FIXED IND 125UH 7.75A 32 MOHM TH


立创商城:
125uH ±15% 7.75A 32mΩ


贸泽:
Fixed Inductors 125uH 15%


艾睿:
This high current 5716-RC leaded inductor from Bourns resists changes in electric current passing through it. This part has a pitch of 17.27 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has an inductance of 125u H. This product is 19.05Typ mm deep. It has a tolerance of 15%. This leaded inductor has a maximum DC current of 7.75 A with a maximum resistance of 32m Ohm. Its test frequency is 1K Hz. This device is made with toroid technology.


安富利:
Ind High Current Toroid 125uH 15% 1KHz 7.75A RDL


Verical:
Inductor High Current Toroid 125uH/65uH 15% 1KHz 7.75A 0.032Ohm DCR RDL


Electro Sonic:
Inductor High Current Toroid 125uH/65uH 15% 1KHz 7.75A 32mOhm DCR RDL


5716-RC中文资料参数规格
技术参数

额定电流 7.75 A

容差 ±15 %

电感 125 µH

屏蔽 No

测试频率 1 kHz

电阻DC) ≤32 mΩ

工作温度Max 105 ℃

工作温度Min -55 ℃

电阻DC Max 32 mΩ

封装参数

安装方式 Through Hole

引脚数 2

封装 Radial

外形尺寸

宽度 0.75 in

高度 46.0 mm

直径 46.0 mm

封装 Radial

物理参数

工作温度 -55℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

5716-RC引脚图与封装图
5716-RC引脚图
5716-RC封装图
5716-RC封装焊盘图
在线购买5716-RC
型号: 5716-RC
制造商: Bourns J.W. Miller 伯恩斯
描述:高电流环形电感 High Current Toroid Inductors
