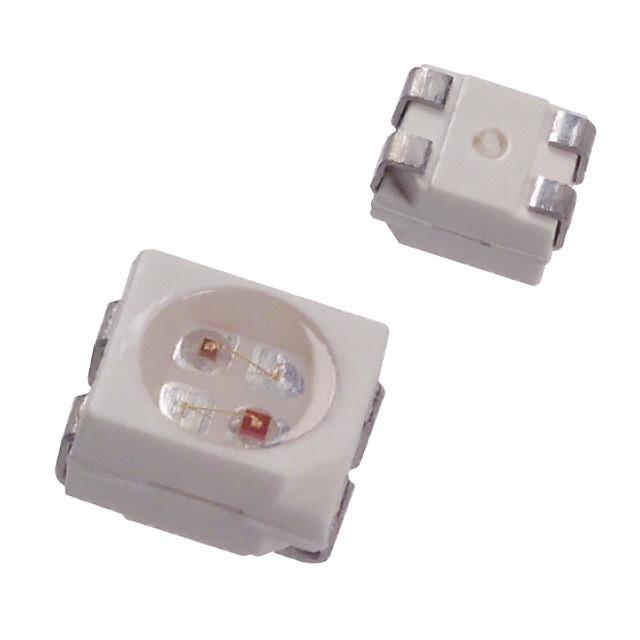

LED G/Y 470NM 590NM 2SMD 4PLCC
Green, Yellow 570nm Green, 590nm Yellow Indication - Discrete 2.1V Green, 1.8V Yellow 4-SMD, J-Lead
得捷: LED GREEN/YELLOW CLEAR 4PLCC SMD
额定电压DC 2.10 V
正向电压 2.10 V
波长 570nm Green,590nm Yellow
发光强度 16.0 mcd
视角 120°
输入电流 20.0 mA
峰值波长 565nm Green,585nm Yellow
测试电流 20 mA
安装方式 Surface Mount
封装 PLCC-4
长度 3.20 mm
宽度 2.79 mm
高度 1.95 mm
颜色 Green, Yellow
产品生命周期 Obsolete
包装方式 Cut Tape CT
RoHS标准 Non-Compliant
含铅标准
数据手册
