521-9901-802F

521-9901-802F图片1
521-9901-802F图片2
521-9901-802F图片3

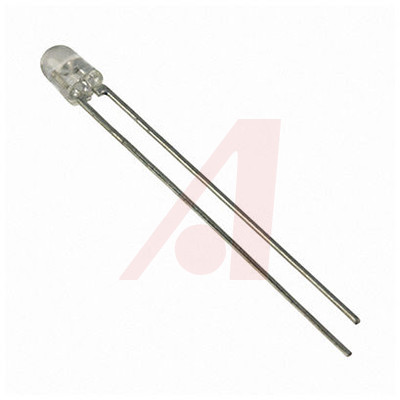

521-9901-802F图片4

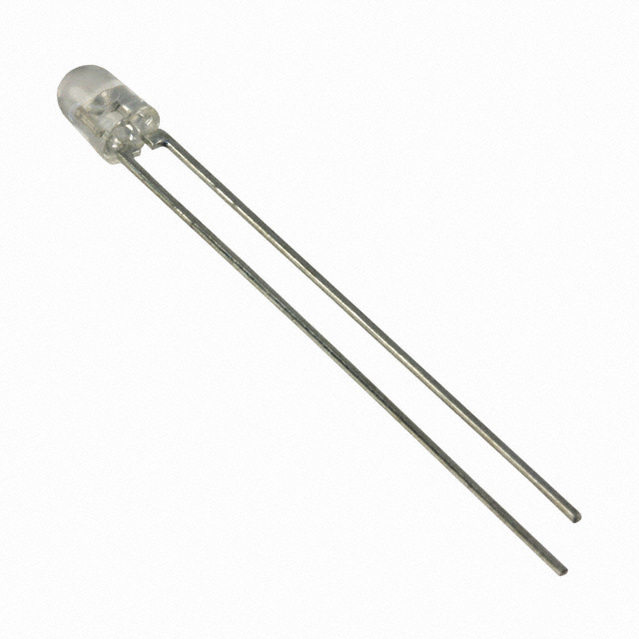

521-9901-802F图片5
521-9901-802F概述

LED; 3mm Through Hole LED, White, Octo-Binned

** 521 Series s**

The 521 series, from Dialight, are diskrete through hole mount LEDs. This range of LEDs are in the industry standard 3mm or 5mm lens package sizes. A wide range of Color options is available with diffused and non diffused lenses.


欧时:
LED Through Hole LED White Octo-Binned


艾睿:
LED Uni-Color White 2-Pin T-1


Allied Electronics:
LED; 3mm Through Hole LED, White, Octo-Binned


Chip1Stop:
LED Uni-Color White 2-Pin T-1


Newark:
# DIALIGHT  521-9901-802F  3MM WHT INGAN WC CB 50 60 70


MASTER:
LED Uni-Color White 2-Pin T-1


Electro Sonic:
LED Uni-Color White 2-Pin T-1


521-9901-802F中文资料参数规格
技术参数

发光强度 2.90 cd

视角 45°

耗散功率 120 mW

测试电流 20 mA

正向电压Max 4 V

正向电流Max 30 mA

工作温度Max 80 ℃

工作温度Min -25 ℃

耗散功率Max 120 mW

封装参数

安装方式 Through Hole

引脚数 2

封装 T-1

外形尺寸

高度 5.55 mm

封装 T-1

物理参数

颜色 White

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8541402000

数据手册

在线购买521-9901-802F
型号: 521-9901-802F
制造商: Dialight
描述:LED; 3mm Through Hole LED, White, Octo-Binned
