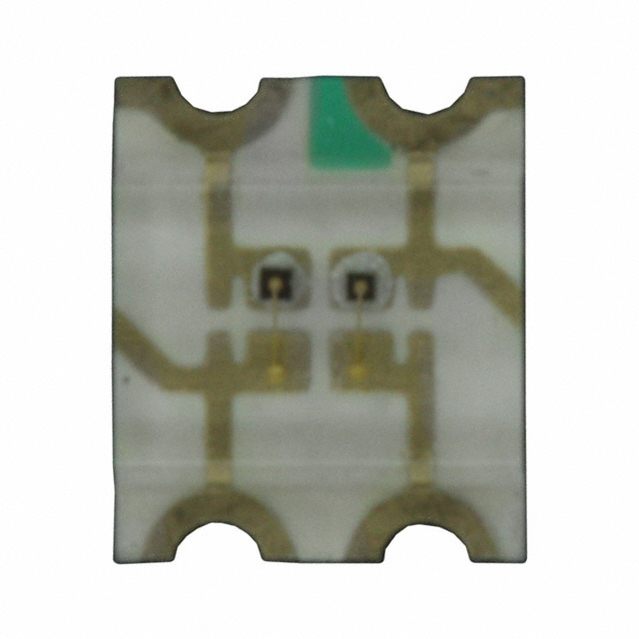

Led; 1210 Smt Led, Yellow/Red, Alingap, Water Clear Lens, 140Deg Viewing Angle
* Compatible with Automatic Placement Equipment
* Packaged in 8 mm Tape, 7" Reel and 20 Per Strip
* Meets EIA-481-1 Package Standard
艾睿:
LED Bi-Color Red/Yellow 4-Pin Chip 12103225Metric T/R
Allied Electronics:
LED; 1210 SMT LED, YELLOW/RED, ALINGAP, WATER CLEAR LENS, 140 DEG VIEWING ANGLE
Chip1Stop:
LED Bi-Color Red/Yellow 4-Pin SMD T/R
MASTER:
LED Bi-Color Red/Yellow 4-Pin Chip 12103225Metric T/R
Electro Sonic:
LED Bi-Color Red/Yellow 4-Pin Chip 12103225Metric T/R
正向电压 2.2 V
波长 635nm, 590nm
发光强度 150 mcd
视角 140°
透镜样式 Non-Diffused
测试电流 20 mA
正向电压Max 2.4 V
正向电流Max 20 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 48 mW
安装方式 Surface Mount
引脚数 4
封装公制 3225
封装 1210
长度 3.20 mm
宽度 700 µm
高度 0.70 mm
封装公制 3225
封装 1210
颜色 Red, Yellow
外观颜色 Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541402000
