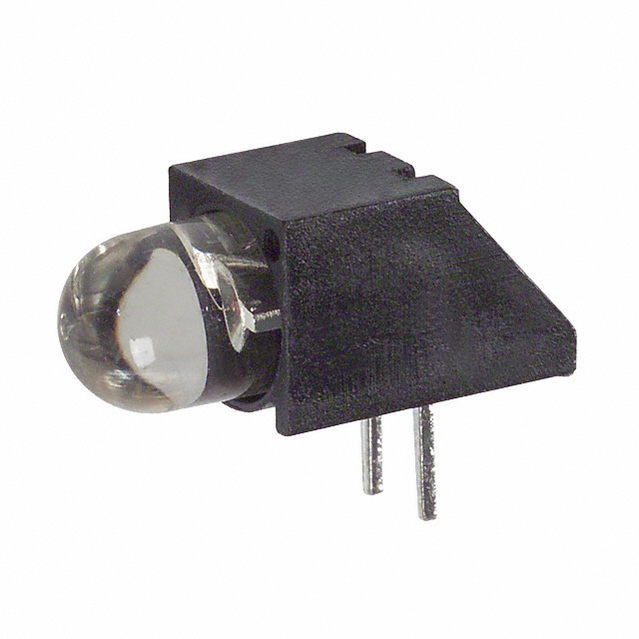

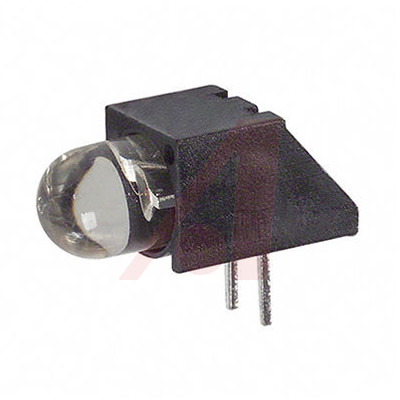

DIALIGHT 550-5707F Circuit Board Indicator, Yellow, 1 LED"s, Through Hole, T-1 3/4 5mm, 20mA, 140mcd
High Luminous intensity solid state light source available in various colors and two-leaded bi-color. Right angle housing offers ease of assembly and trimmed leads compatible with dual and quad 550 Series.
得捷:
5MM LED CBI
艾睿:
LED Uni-Color Yellow 583nm 2-Pin
Allied Electronics:
INDICATOR, CIRCUIT BOARD, LED, SUPER BRIGHT, WATER CLEAR, 2.2V, YELLOW
Chip1Stop:
LED Uni-Color Yellow 583nm 2-Pin
Newark:
# DIALIGHT 550-5707F Circuit Board Indicator, Yellow, 1 LED"s, Through Hole, T-1 3/4 5mm, 20 mA, 140 mcd
MASTER:
LED Uni-Color Yellow 583nm 2-Pin Bulk
Online Components:
LED Uni-Color Yellow 583nm 2-Pin Bulk
Electro Sonic:
LED Uni-Color Yellow 583nm 2-Pin Bulk
工作电压 2.2 V
正向电压 2.2 V
波长 583 nm
发光强度 140 mcd
视角 24°
透镜样式 Non-Diffused
峰值波长 583 nm
测试电流 20 mA
正向电流 20 mA
正向电压Max 3 V
正向电流Max 20 mA
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 85 mW
额定电压 2.2 V
安装方式 Through Hole
引脚数 2
长度 13.9 mm
宽度 6.1 mm
高度 6.1 mm
颜色 Yellow
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541402000
