DIALIGHT 559-2101-007F 发光二极管指示器 面板安装, 摁入式, 红色, 6.35 mm, 2.2 VDC, 10 mA, 7 mcd, 无评级

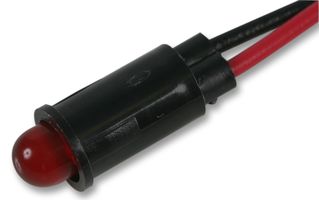

The is a red 5mm panel mount LED Indicator with black PBT housing that enhances LED contrast. It features snap-in mounting, requires no additional hardware and straight terminals suitable for wire-wrapping. It also features tinted-diffused lens and low current and high efficiency snap-in PMI configuration.
- .
- Uniform illumination
- .
- IC compatible
- .
- UL94V-0 Flammability rating
- .
- High reliability - 100000 hours life
额定电压DC 2.55 V
工作电压 2.2 VDC
额定电流 10 mA
正向电压 2.2 V
波长 650 nm
发光强度 7 mcd
视角 50°
峰值波长 650 nm
正向电流 10 mA
正向电压Max 2.2 V
正向电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 2.2 VDC
电源电压 2.2 VDC
安装方式 Through Hole
引脚数 2
脚长度 12.7 mm
外壳颜色 Black
颜色 Red
工作温度 -25℃ ~ 85℃
外观颜色 Red
产品生命周期 Active
包装方式 Each
制造应用 发光二极管照明, LED Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8541402000
