5600462概述

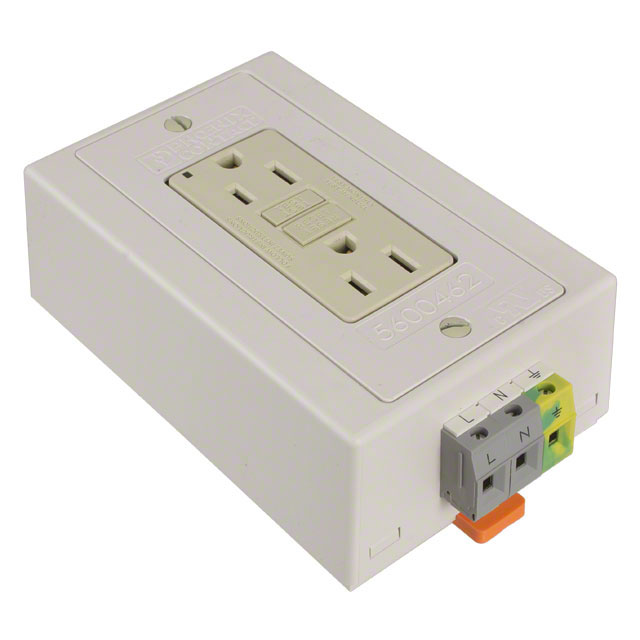

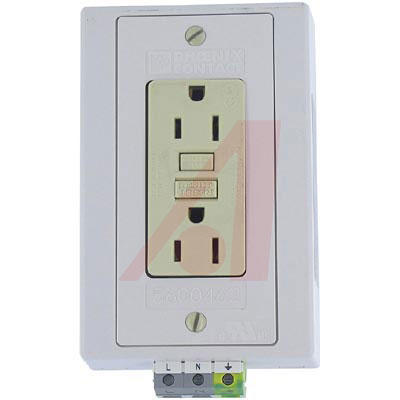

15A Dual Din Rail Mount With Two 120V 15A Receptacles With Ground Fault Ckt Interruption

电源接入连接器 插座,母型插口 NEMA 5-15R DIN 轨道


得捷:
PWR ENT RCPT NEMA5-15 DIN SCREW


艾睿:
Railmountable Double Socket With Integrated Fault Current Circuit Breaker


Allied Electronics:
Outlet, Dual Utility, 120V, 15A, with Ground Fault Circuit Interruption


Verical:
RAIL-MOUNTABLE DOUBLE SOCKET WITH INTEGRATED FAULT CURRENT CIRCUIT BREAKER, FOR MOUNTING ON 35 MM DIN RAILS IN


MASTER:
Rail-mounted dual power outlet with two 120 V AC/15 A receptacles equipped with ground fault circuit interruption GFCI for 35 mm DIN rail per EN 60715. GFCI protects against shock hazards associated with ground shorts. For enhanced safety - the groundin


Electro Sonic:
Rail-mounted dual power outlet with two 120 V AC/15 A receptacles equipped with ground fault circuit interruption GFCI for 35 ...


5600462中文资料参数规格
技术参数

触点数 6

额定电流 15 A

额定电流Max 15 A

工作温度Max 60 ℃

工作温度Min -30 ℃

额定电压Max 125 VAC

额定电压 120 VAC

额定电压AC Max 125 V

封装参数

安装方式 DIN Rail

外形尺寸

高度 135 mm

物理参数

颜色 Ivory

工作温度 -30℃ ~ 60℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8537109070

数据手册

在线购买5600462
型号: 5600462
描述:15A Dual Din Rail Mount With Two 120V 15A Receptacles With Ground Fault Ckt Interruption
