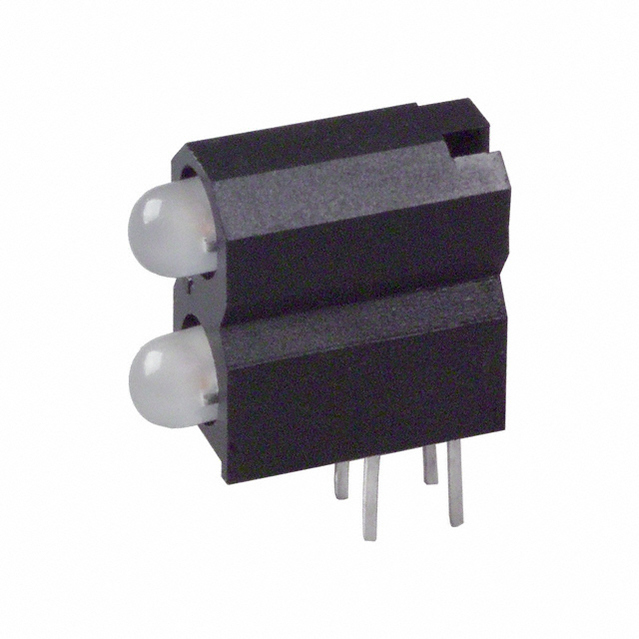

DIALIGHT 553-0744-300F Circuit Board Indicator, Green, Yellow, 2 LED"s, Through Hole, T-1 3mm, Y 4.3mcd, G 6.3mcd
Bi-Level Bi-Color Green/Yellow 565nm/585nm 4-Pin Bulk
艾睿:
LED Bi-Level Bi-Color Green/Yellow 565nm/585nm 4-Pin Bulk
Allied Electronics:
3MM BI-LEVEL CBI
Chip1Stop:
LED Bi-Level Bi-Color Green/Yellow 565nm/585nm 4-Pin Bulk
Newark:
# DIALIGHT 553-0744-300F Circuit Board Indicator, Green, Yellow, 2 LED"s, Through Hole, T-1 3mm, Y 4.3mcd, G 6.3mcd
MASTER:
LED Bi-Level Bi-Color Green/Yellow 565nm/585nm 4-Pin Bulk
Electro Sonic:
LED Bi-Level Bi-Color Green/Yellow 565nm/585nm 4-Pin Bulk
触点数 4
正向电压 2.10 V
波长 585 nm, 565 nm
发光强度 6.30 mcd
视角 80°
峰值波长 565nm, 585nm
耗散功率 100/60mW
测试电流 10 mA
正向电压Max 2.8 V
工作温度Max 100 ℃
工作温度Min -55 ℃
额定电压 2.1 V
安装方式 Through Hole
引脚数 4
长度 11.7 mm
宽度 4.32 mm
高度 9.65 mm
颜色 Green, Yellow
外观颜色 Green
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541402000
