568-0202-323F概述

LED Quad-Level Uni-Color Green/Green/Yellow/Yellow 565nm/565nm/585nm/585nm 8Pin Bulk

Quad-Level Uni-Color Green/Green/Yellow/Yellow 565nm/565nm/585nm/585nm 8-Pin Bulk

艾睿:
LED Quad-Level Uni-Color Green/Green/Yellow/Yellow 565nm/565nm/585nm/585nm 8-Pin Bulk

Chip1Stop:
LED Quad-Level Uni-Color Green/Green/Yellow/Yellow 565nm/565nm/585nm/585nm 8-Pin Bulk

Newark:
# DIALIGHT 568-0202-323F Circuit Board Indicator, Green, Yellow, 4 LED"s, Through Hole, T-1 3mm

MASTER:
LED Quad-Level Uni-Color Green/Green/Yellow/Yellow 565nm/565nm/585nm/585nm 8-Pin Bulk

Electro Sonic:
LED Quad-Level Uni-Color Green/Green/Yellow/Yellow 565nm/565nm/585nm/585nm 8-Pin Bulk

568-0202-323F中文资料参数规格

技术参数

触点数 8

正向电压 1.90 V

波长 585 nm, 565 nm

发光强度 1.60 mcd

视角 60°

耗散功率 20/20/75/75mW

测试电流 2 mA

工作温度Max 100 ℃

工作温度Min -55 ℃

额定电压 1.9 V

封装参数

安装方式 Through Hole

引脚数 8

外形尺寸

长度 10.7 mm

宽度 4.318 mm

高度 20.32 mm

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8541402000

数据手册

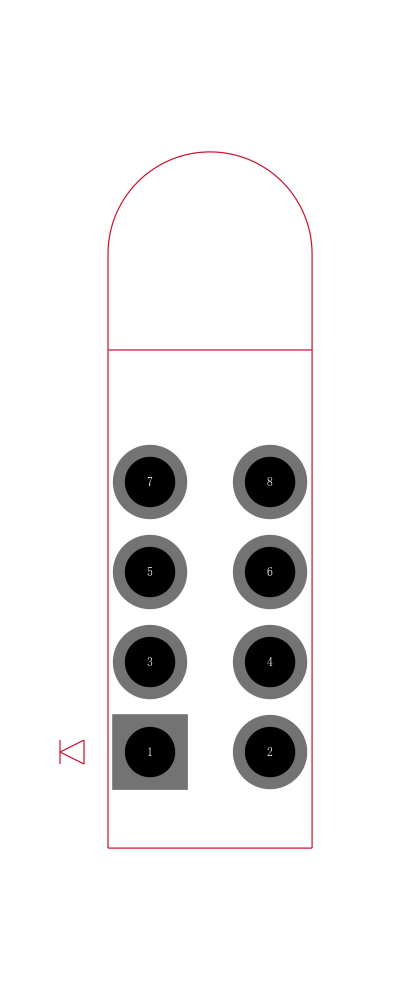

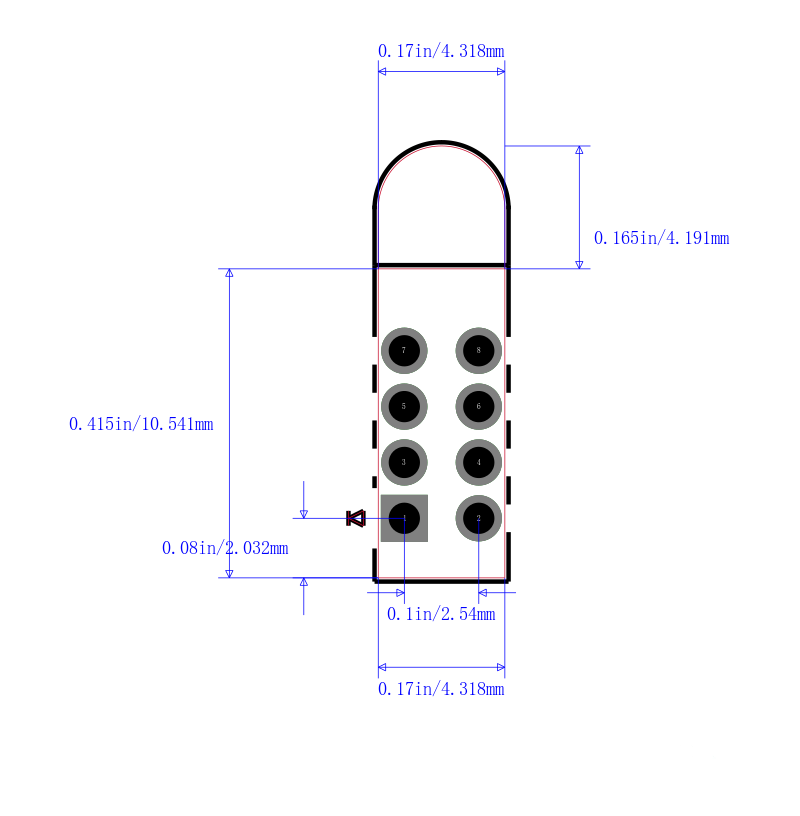

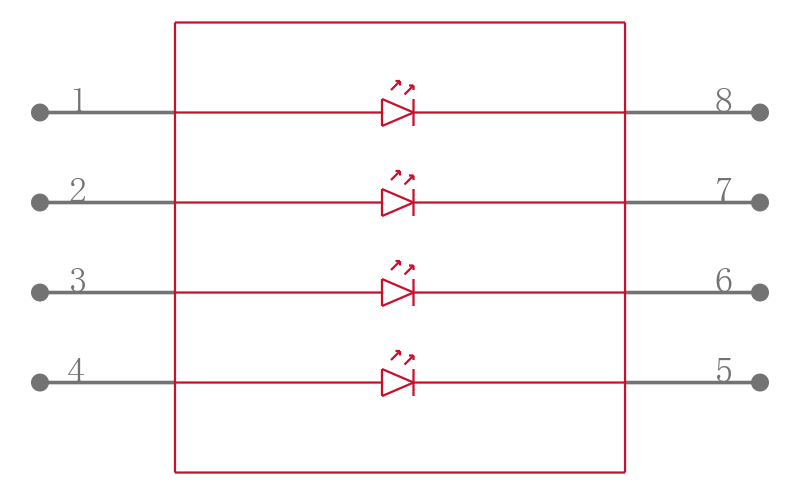

568-0202-323F引脚图与封装图

在线购买568-0202-323F

型号： 568-0202-323F

制造商： Dialight

描述：LED Quad-Level Uni-Color Green/Green/Yellow/Yellow 565nm/565nm/585nm/585nm 8Pin Bulk
