559-6401-007F概述

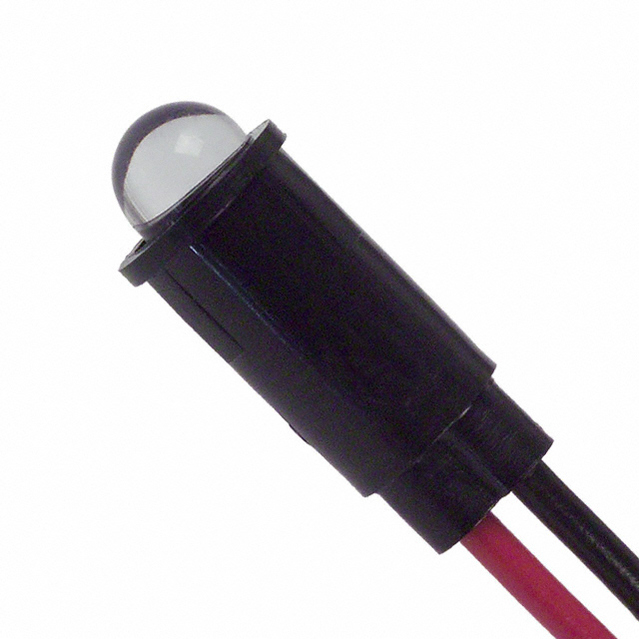

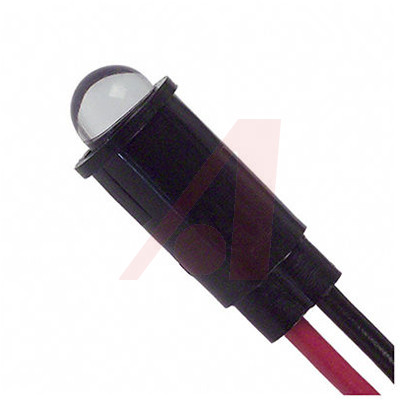

发光二极管指示灯, 面板安装, 5MM, 白色, 3.5V

"s 559 series panel mount indicator is available with a variety of LEDs including AlInGaP and InGaN technology for high brightness applications, bicolor and integral resistors. These indicators are designed for a variety of applications such as fan tray assemblies, datacenter infrastructure servers and storage, next-gen wireless infrastructure, electronic test & measurement instruments, communications testing equipment, process controls, automation, medical equipment, and handheld devices.

559-6401-007F中文资料参数规格
技术参数

额定电压DC 4.00 V

工作电压 3.5 V

额定电流 20 mA

正向电压 3.50 V

发光强度 600 mcd

视角 50°

透镜样式 Non-Diffused

正向电流 20 mA

正向电流Max 30 mA

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压 3.5 VDC

电源电压 3.5 VDC

封装参数

安装方式 Snap-In

引脚数 2

外形尺寸

长度 371 mm

高度 5.33 mm

直径 5.00 mm

物理参数

外壳颜色 Black

颜色 White

其他

产品生命周期 End of Life

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8541402000

数据手册

在线购买559-6401-007F
型号: 559-6401-007F
制造商: Dialight
描述:发光二极管指示灯, 面板安装, 5MM, 白色, 3.5V
