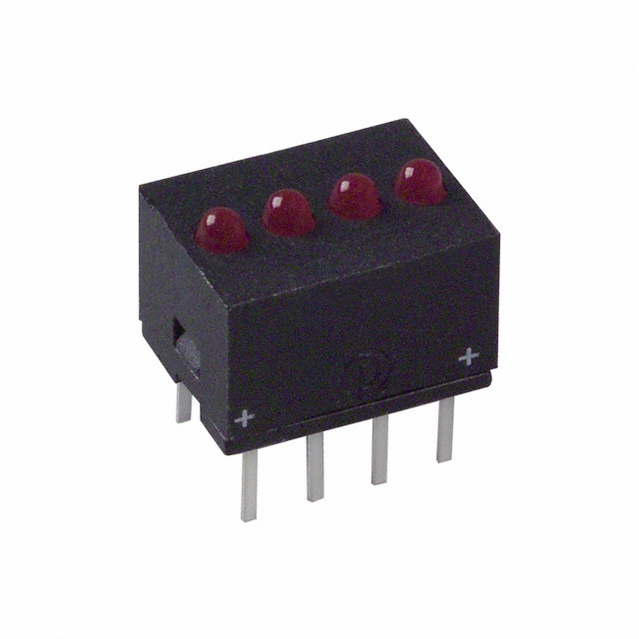

DIALIGHT 555-5003F 发光二极管指示灯, PCB安装, 4 LED, 2MM, 红色, 5V
** 555-5 Series CBI® Circuit Board Indicators**
The 555-5xxx series, from Dialight, are quad LED CBI® circuit board indicators. These PCB LED indicators contain four 2mm T-3/4 LEDs within a black plastic housing. The housing sits the LEDs vertical straight up from the board whilst providing a high contrast between itself and the LED. The 555-5xxx is available with general purpose and integral resistor LED types.
触点数 8
正向电压 5 V
波长 650 nm
发光强度 1.9 mcd
视角 40°
峰值波长 650 nm
测试电流 20 mA
正向电流 6 mA
正向电压Max 6 V
正向电流Max 8 mA
工作温度Max 100 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 8
引脚间距 2.54 mm
长度 10.3 mm
宽度 10.29 mm
高度 6.35 mm
直径 2.00 mm
脚长度 3.68 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Red
外观颜色 Red
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541402000
