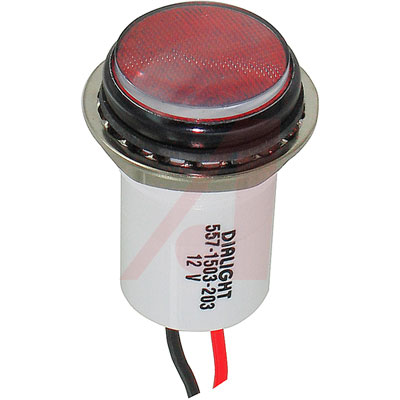

DIALIGHT 557-1503-203F 发光二极管指示器 面板安装, 防水, 红色, 17.463 mm, 12 VDC, 20 mA, 1000 foot lambert, 无评级
**LED Indicators, 17.5mm, Panel Mount, 557 Series**
The 557 series of LED panel mount indicators from are suitable for a wide range of applications such as electronic instrument panels, safety applications, vending machines and many more.
e络盟:
发光二极管指示器 面板安装, 防水, 红色, 17.463 mm, 12 VDC, 20 mA, 1000 foot lambert, 无评级
艾睿:
LED Panel Mount Indicator Uni-Color Red Automotive 2-Pin
Allied Electronics:
Indicator, LED; Red; 1000fL; 11/16In.; 12VDC; 6In.Wire Lead; 20mA; Panel; -25degC
Chip1Stop:
LED Uni-Color Red 2-Pin
Verical:
LED Panel Mount Indicator Uni-Color Red 800mcd Automotive 2-Pin
Newark:
# DIALIGHT 557-1503-203F LED Panel Mount Indicator, Watertight, Red, 12 VDC, 17.463 mm, 20 mA, 1000 foot lambert, Not Rated
MASTER:
LED Panel Mount Indicator Uni-Color Red 1020mcd Automotive 2-Pin
GOPHER:
Panel Mount Ind - Led SUPER BRITE RED 12VDC 6IN WIRE LEADS WHITE POLYCARBONATE HOUSING,NUT&WASHER; MOUNT
Electro Sonic:
LED Panel Mount Indicator Uni-Color Red 1020mcd Automotive 2-Pin
工作电压 12 VDC
正向电压 12 V
发光强度 1.00 cd
正向电流 20 mA
正向电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 12 VDC
安装方式 Through Hole
引脚数 2
高度 35.6 mm
脚长度 140 mm
颜色 Red
材质 Polycarbonate
产品生命周期 Active
包装方式 Each
制造应用 国防, 后勤, 发光二极管照明, Safety, 车用, Aerospace, Defence, Military, Logistics, Consumer Electronics, Avionics, 安全, Automotive, 国防, 军用与航空, 军用与航空, LED Lighting, 传感与仪器, 消费电子产品, Sensing & Instrumentation, 航空电子
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8541402000
