585-5525概述

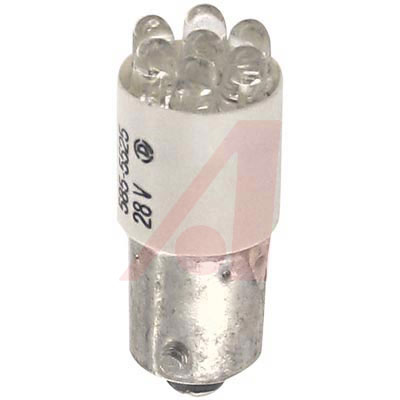

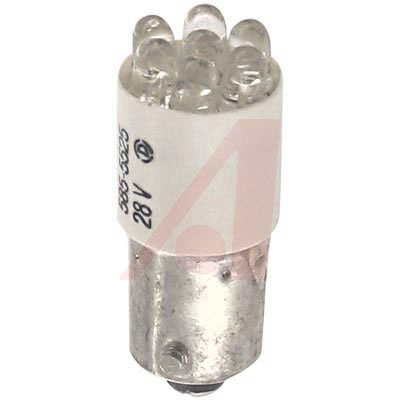

LED Cluster Uni-Color Yellow 592nm 2100mcd 7 LED 2Pin

Non-Polarized, Bayonet Base, Yellow , 592 nm peak wavelength, 585 Series Cluster Based LED Lamp

* High brightness with low current draw and uses up to 90% less energy than incandescent

* Long life up to 100 Khr

* No heat generated

* Mounts directly into industry-standard socket

* Resistant to shock and vibration

* Super bright single chip design

* Replaces

Designed to directly replace many popular subminiature and miniature incandescent lamps. Benefits of LED technology over incandescent are significant. Offer long life, are shock resistant, withstand vibration and provide energy conservation.

585-5525中文资料参数规格
技术参数

电源电压DC 28.0 V

额定电流 30 mA

正向电压 28.0 V

波长 592 nm

发光强度 2100 mcd

峰值波长 592 nm

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压 28 VDC

电源电压 28 V

封装参数

安装方式 Snap-In

引脚数 2

封装 T-3-1

外形尺寸

高度 27.7 mm

封装 T-3-1

物理参数

颜色 Yellow

其他

产品生命周期 Active

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

REACH SVHC版本 2014/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买585-5525
型号: 585-5525
制造商: Dialight
描述:LED Cluster Uni-Color Yellow 592nm 2100mcd 7 LED 2Pin
