585-5323概述

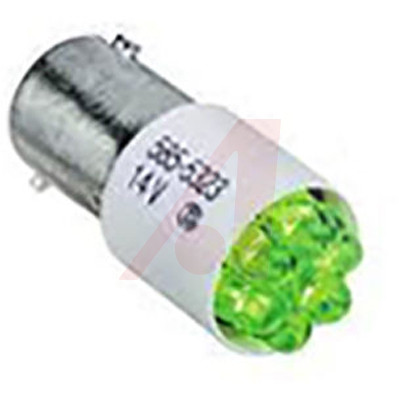

LED Cluster Uni-Color Green 565nm 420mcd 7 LED 2Pin

Green , T-3 1/4 Package Type, Miniature Bayonet Base Style, LED

* High brightness with low current draw-uses up to 90% less energy than an incandescent

* True non-polarized configurations available

* No heat generated

* Mounts directly into industry standard socket

* Resistant to shock and vibration

* Super bright LED clust

"s line of based LED lamps is designed to directly replace many popular subminiature and miniature incandescent lamps. The benefits of LED technology over incandescent are significant: They offer long life, are shock resistant, withstand vibration

585-5323中文资料参数规格
技术参数

电源电压DC 14.0 V

额定电流 40 mA

正向电压 14.0 V

波长 565 nm

发光强度 420 mcd

峰值波长 565 nm

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压 14 VAC

封装参数

安装方式 Panel

引脚数 2

封装 T-3-1

外形尺寸

高度 1.09 in

封装 T-3-1

物理参数

颜色 Green

工作温度 -30℃ ~ 85℃

其他

产品生命周期 Active

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买585-5323
型号: 585-5323
制造商: Dialight
描述:LED Cluster Uni-Color Green 565nm 420mcd 7 LED 2Pin
