559-6401-027F概述

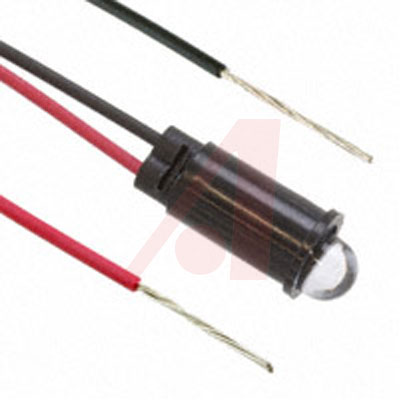

Prominent Panel LED Panel Mount, 6.32 6.4mm Mounting Hole Size, White LED, Lead Wire Termination

**Features & Benefits**

* RoHS compliant

* Long life - typically 100K hours

* Low power consumption - uses up to 90% less energy than an incandescent indicator

* Front panel snap-in mounting requires no additional hardware

* No heat generated

* Resistant to shock and vibration

* Termination - Leads


得捷:
WHT LED SNAP-IN PMI PVC FREE


艾睿:
LED Uni-Color White 2-Pin


Allied Electronics:
Indicator; Pnl-Mnt; LED; White; 0.250 in.; 1.8/2.1 VDC; 14 in. Leads


Verical:
LED Uni-Color White 2-Pin


Newark:
# DIALIGHT  559-6401-027F  WHT LED SNAP-IN PMI PVC FREE New


MASTER:
LED Panel Mount Indicator Uni-Color White 2500mcd 2-Pin


Online Components:
LED Panel Mount Indicator Uni-Color White 2500mcd 2-Pin


Electro Sonic:
LED Panel Mount Indicator Uni-Color White 2500mcd 2-Pin


559-6401-027F中文资料参数规格
技术参数

正向电压 3.5 V

发光强度 2500 mcd

视角 50°

测试电流 20 mA

正向电流 30 mA

正向电流Max 30 mA

工作温度Max 85 ℃

工作温度Min -30 ℃

封装参数

引脚数 2

外形尺寸

高度 15.88 mm

物理参数

颜色 White

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8541402000

数据手册

在线购买559-6401-027F
型号: 559-6401-027F
制造商: Dialight
描述:Prominent Panel LED Panel Mount, 6.32 6.4mm Mounting Hole Size, White LED, Lead Wire Termination
