558-0301-027F

558-0301-027F图片1
558-0301-027F图片2

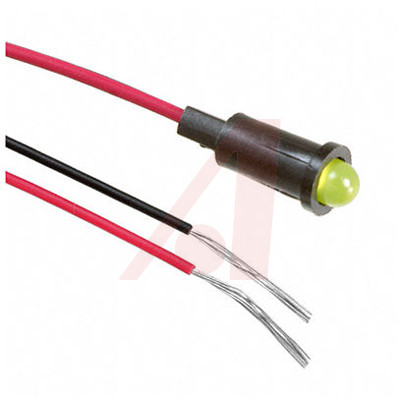

558-0301-027F图片3
558-0301-027F图片4
558-0301-027F图片5
558-0301-027F概述

LED面板上的指示器 Yellow Panel Mount 14in lead, PVC Free

**LED Indicators, 4mm Mount, 558 Series**

The 558 series of LED panel mount indicators from are suitable for a wide range of applications such as electronic test equipment, process controls, medical equipment, automation and hand-held devices.


贸泽:
LED面板上的指示器 Yellow Panel Mount 14in lead, PVC Free


艾睿:
LED Uni-Color Yellow 585nm 2-Pin


Allied Electronics:
Indicator; Pnl-Mnt; Yel; 5 VDC; .156 in. MH; 14 in. Leads; PVC Free


Verical:
LED Uni-Color Yellow 585nm 2-Pin


Newark:
# DIALIGHT  558-0301-027F  YEL LED SNAP-IN PMI PVC FREE New


MASTER:
LED Panel Mount Indicator Uni-Color Yellow 585nm 16mcd 2-Pin


Online Components:
LED Panel Mount Indicator Uni-Color Yellow 585nm 16mcd 2-Pin


Electro Sonic:
LED Panel Mount Indicator Uni-Color Yellow 585nm 16mcd 2-Pin


558-0301-027F中文资料参数规格
技术参数

正向电压 2.1 V

发光强度 16 mcd

视角 40°

峰值波长 585 nm

测试电流 10 mA

正向电流 20 mA

正向电流Max 20 mA

工作温度Max 85 ℃

工作温度Min -25 ℃

电源电压 5 VDC

封装参数

引脚数 2

外形尺寸

高度 9.93 mm

物理参数

颜色 Yellow

工作温度 -25℃ ~ 85℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8541402000

数据手册

在线购买558-0301-027F
型号: 558-0301-027F
制造商: Dialight
描述:LED面板上的指示器 Yellow Panel Mount 14in lead, PVC Free
