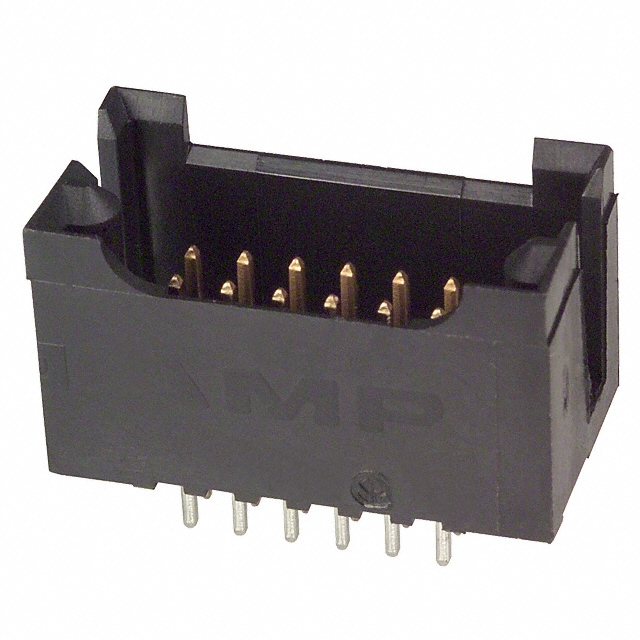

5-102567-1

AMP FROM TE CONNECTIVITY  5-102567-1  线至板连接器, 针座, 12路, 2.54MM

针座 通孔 12 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 12POS 2.54MM

e络盟:
线至板连接器, 针座, 12路, 2.54MM

艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this shrouded 5-102567-1 header connector from TE Connectivity on your PCB today! This HDR connector&s;s 12 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 3 A/contact. 5-102567-1 is housed in black thermoplastic. This product is 24.89 mm long, 13.97 mm tall and 13.08 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 12 POS 2.54mm Solder ST Top Entry Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  5-102567-1  Wire-To-Board Connector, 2.54 mm, 12 Contacts, Header, AMPMODU Mod II Series, Through Hole, 2 Rows

MASTER:
HEADER ASSEMBLY, MOD II, .100 X .100CL

Powell:
.100 inch AMPMODU 2 Piece

Electro Sonic:
12 MODII 2PC HDR DR SHRD .100, ROHS
