5-102692-3

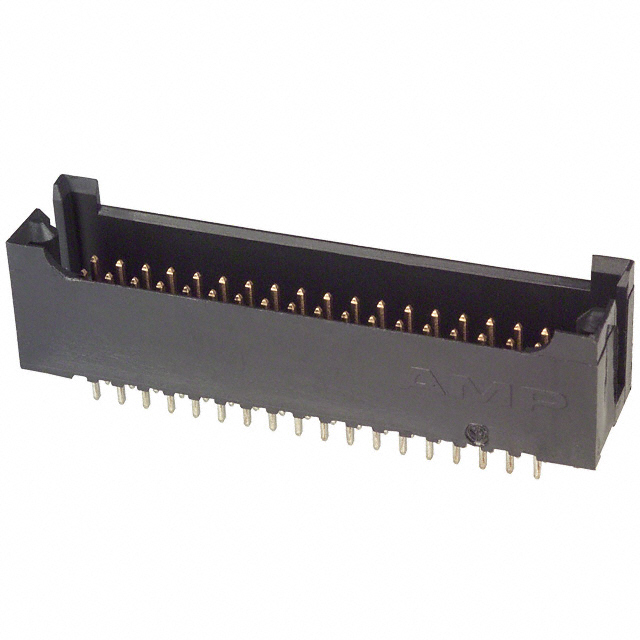

Conn Shrouded Header HDR 36POS 2.54mm Solder ST Thru-Hole

针座 通孔 36 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 36POS 2.54MM

艾睿:
Use this shrouded 5-102692-3 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 36 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. 5-102692-3 is housed in black thermoplastic. This product is 55.37 mm long, 13.97 mm tall and 13.08 mm deep.

安富利:
Conn Shrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole Automotive Tube

MASTER:
HEADER ASSEMBLY, MOD II, .100C.100CL, .025 SQ POSTS

Powell:
.100 inch AMPMODU 2 Piece

Electro Sonic:
36 MODII 2PC HDR DR SHRD, ROHS
