Conn Shrouded Header HDR 50POS 2.54mm Solder ST Thru-Hole
Connector Header Through Hole 50 position 0.100" 2.54mm
得捷:
CONN HEADER VERT 50POS 2.54MM
艾睿:

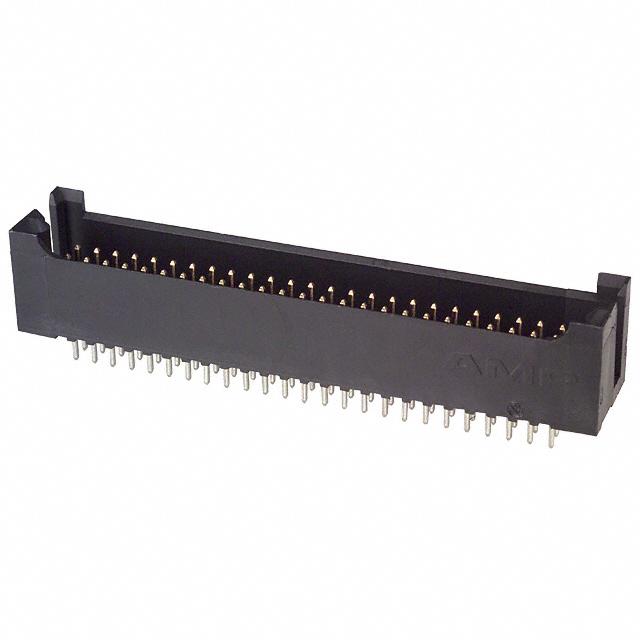

Easily mount this shrouded 534978-8 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 3 A/contact. This product is 73.15 mm long, 13.97 mm tall and 13.08 mm deep. It uses the solder termination method. 534978-8 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.
Chip1Stop:
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole
Verical:
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Automotive Tube
MASTER:
HEADER ASSY, MOD II, DOUBLE ROW, 2.54 X 2.54 [.100 X .100] CL, 0.64 [.025] SQUARE POST,BOARD RETENTION FEATURE
Powell:
.100 inch AMPMODU 2 Piece
Electro Sonic:
50 MODII 2PC HDR DR W/HLDWN
触点数 50
极性 Male
触点电镀 Gold, Tin
额定电流 3 A
绝缘电阻 1.00 GΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 50
安装角度 180 °
触点额定电流 3.00 A
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 12 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 73.15 mm
宽度 13.08 mm
高度 13.97 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 -, Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
