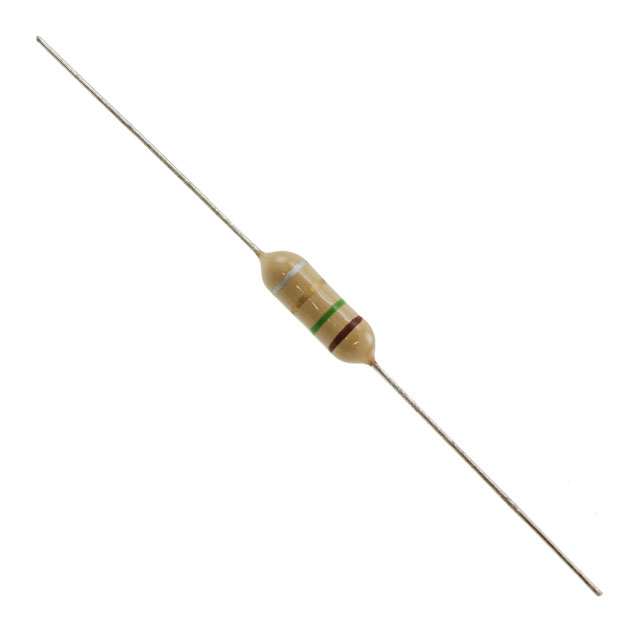

BOURNS JW MILLER 5300-03-RC 射频扼流圈, 5300系列, 1.5uH 10% 160MHz 3.1A 20mΩ
Your electrical design will benefit from this rf choke leaded inductor from Bourns. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has an inductance of 1.5u H. This product is 12.7 mm long with a diameter of 4.06 mm. This device is made with bobbin core technology. This leaded inductor has a maximum DC current of 3.1 A with a maximum resistance of 20m Ohm. It has a tolerance of 10%. Its test frequency is 7.96M Hz, while its minimum self-resonant frequency is 160M Hz.
额定电流 3.1 A
容差 ±10 %
电感 1.5 µH
自谐频率 160 MHz
电阻 20 mΩ
电感公差 ±10 %
测试频率 7.96 MHz
电阻DC） ≤20 mΩ
额定电流DC 3.1 A
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 0.02 Ω
安装方式 Through Hole
引脚数 2
封装 Axial
长度 12.7 mm
封装 Axial
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
