5300-19-RC

BOURNS JW MILLER  5300-19-RC  射频扼流圈, 5300系列, 33uH 10% 7.6MHz 910mA 240mΩ

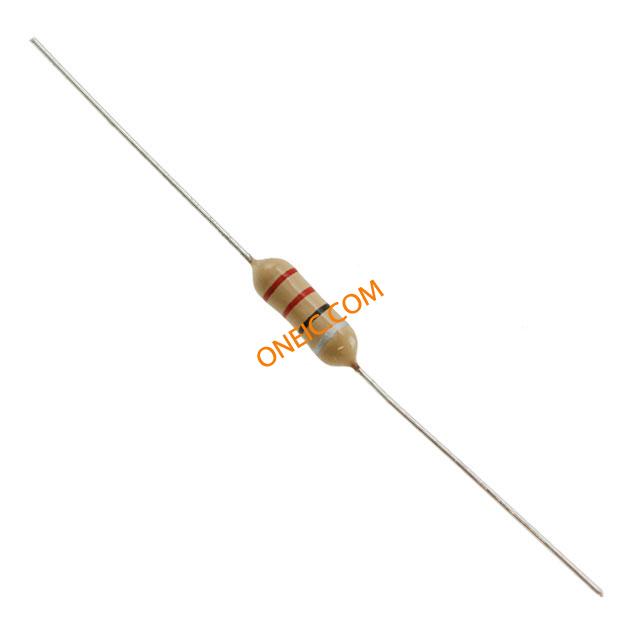

33µH Unshielded Wirewound Inductor 910mA 240mOhm Max Axial

立创商城:
33uH ±10% 910mA 240mΩ

得捷:
FIXED IND 33UH 910MA 240 MOHM TH

e络盟:
BOURNS JW MILLER  5300-19-RC  射频扼流圈, 5300系列, 33uH 10% 7.6MHz 910mA 240mΩ

艾睿:
If you need a convenient and easily removable inductor for your electrical design then consider this rf choke 5300-19-RC leaded inductor from Bourns. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 10%. This product is 12.7 mm long with a diameter of 4.06 mm. This device is made with bobbin core technology. It has an inductance of 33u H. This leaded inductor has a maximum DC current of 910m A with a maximum resistance of 240m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 7.6M Hz.

安富利:
Ind RF Choke Bobbin Core 33uH 10% 1KHz Ferrite 910mA AXL Bag

Chip1Stop:
Ind RF Choke Bobbin Core 33uH 10% 1KHz Ferrite 910mA AXL Bag

TME:
Inductor: axial; THT; 33uH; 910mA; 240mΩ; Ø4.06x12.7mm; ±10%

Verical:
RF Choke Bobbin Core 33uH 10% 1KHz Ferrite 0.91A 0.24Ohm DCR AXL Bag

Newark:
# BOURNS JW MILLER  5300-19-RC  Axial Leaded High Frequency Inductor, RF Choke, 5300 Series, 33 µH, 910 mA, 0.24 ohm, ± 10%

MASTER:
RF Choke Bobbin Core 33uH 10% 1KHz Ferrite 0.91A 0.24Ohm DCR AXL Bag

Electro Sonic:
RF Choke Bobbin Core 33uH 10% 1KHz Ferrite 0.91A 0.24Ohm DCR AXL Bag
