5800-560-RC

VW- 1额定热缩管覆盖绕组 VW-1 rated shrink tubing to cover winding

High Current RF Choke Bobbin Core 56uH 10% 1KHz Ferrite 804mA 140mOhm DCR AXL

得捷:
FIXED IND 56UH 1A 150 MOHM TH

立创商城:
56uH ±10% 1A 150mΩ

贸泽:
固定电感器 56uH 10%

艾睿:

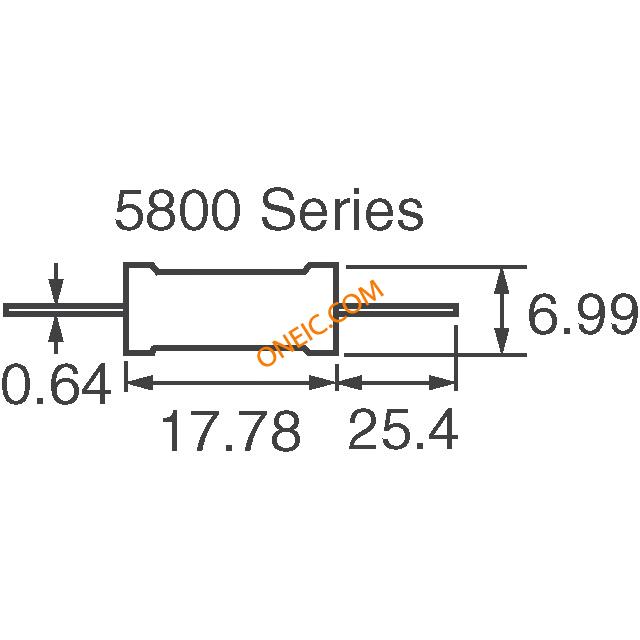

Your electrical design will benefit from this high current rf choke 5800-560-RC leaded inductor from Bourns. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its test frequency is 1K Hz. It has an inductance of 56u H. This leaded inductor has a maximum DC current of 804m A with a maximum resistance of 140m Ohm. This device is made with bobbin core technology. This product is 17.78 mm long with a diameter of 6.99 mm. It has a tolerance of 10%.

TME:
Inductor: axial; THT; 56uH; 804mA; 140mΩ; Ø6.73x17.78mm; ±10%

Verical:
High Current RF Choke Bobbin Core 56uH 10% 1KHz Ferrite 1A 0.15Ohm DCR AXL

Newark:
# BOURNS JW MILLER  5800-560-RC  Choke, High Current, 56 µH, 804 mA, 0.14 ohm, ± 10%, 5800 Series

MASTER:
High Current RF Choke Bobbin Core 56uH 10% 1KHz Ferrite 1A 150mOhm DCR AXL

Electro Sonic:
High Current RF Choke Bobbin Core 56uH 10% 1KHz Ferrite 1A 150mOhm DCR AXL
