5962-9314901QRA

5962-9314901QRA图片1
5962-9314901QRA图片2
5962-9314901QRA图片3
5962-9314901QRA图片4
5962-9314901QRA概述

触发器 Octal Edge-Triggered D-Type Flip-Flops with 3-State Outputs 20-CDIP -55 to 125

Texas Instruments" flip flop device will allow you to easily build and test a circuit based on the state information provided. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.

5962-9314901QRA中文资料参数规格
技术参数

电路数 1

电压波节 5.00 V

静态电流 30 mA

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

引脚数 20

封装 CDIP-20

外形尺寸

长度 24.2 mm

宽度 6.92 mm

高度 3.56 mm

封装 CDIP-20

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

5962-9314901QRA引脚图与封装图

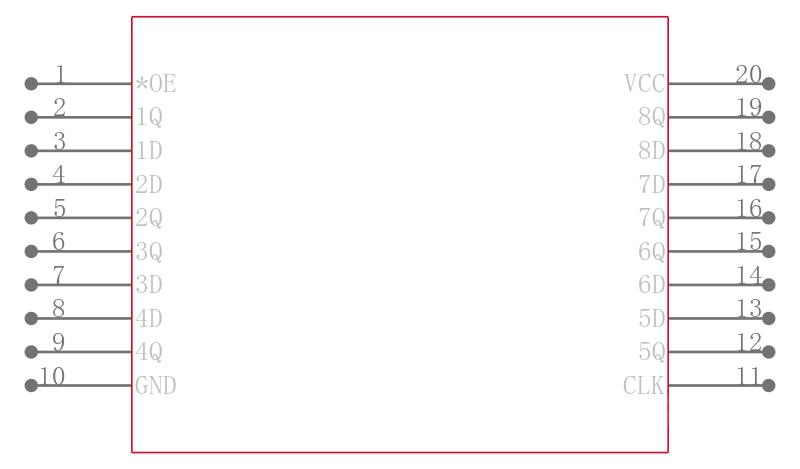

5962-9314901QRA引脚图
5962-9314901QRA封装图

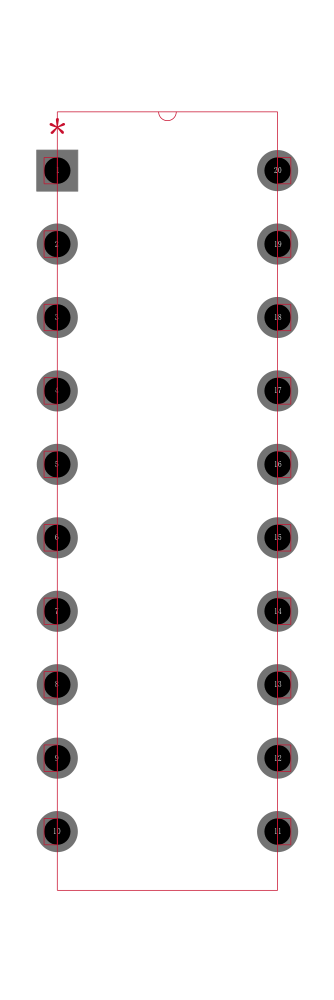

5962-9314901QRA封装焊盘图
在线购买5962-9314901QRA
型号: 5962-9314901QRA
制造商: TI 德州仪器
描述:触发器 Octal Edge-Triggered D-Type Flip-Flops with 3-State Outputs 20-CDIP -55 to 125
