5962-8683801DA概述

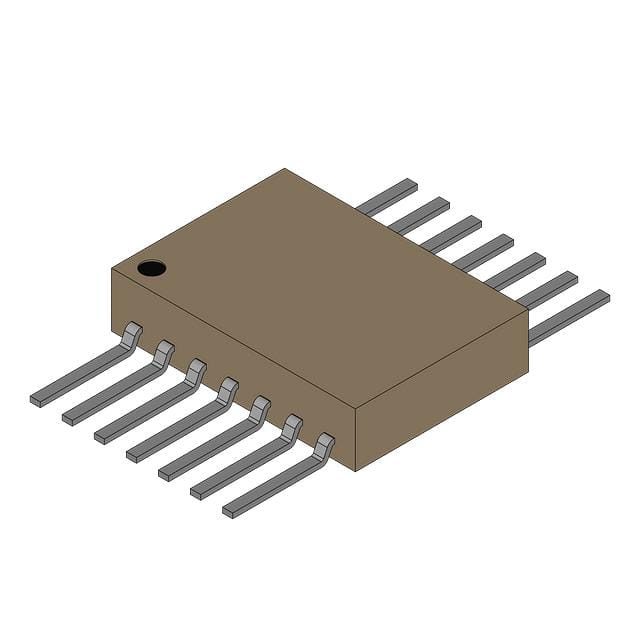

逻辑门 Triple 3-Input Positive-NOR Gates 14-CFP -55 to 125

Thanks to Texas Instruments and their logic gates, you can simplify your circuit down to a fundamental level. This gate has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.


立创商城:
5962-8683801DA


得捷:
SN54ALS27A TRIPLE 3-INPUT POSITI


贸泽:
逻辑门 Triple 3-Input Positive-NOR Gates 14-CFP -55 to 125


艾睿:
NOR Gate 3-Element 3-IN Bipolar 14-Pin CFPAK Tube


安富利:
NOR Gate 3-Element 3-IN Bipolar 14-Pin CFPAK Tube


Chip1Stop:
NOR Gate 3-Element 3-IN Bipolar 14-Pin CFPAK Tube


Verical:
NOR Gate 3-Element 3-IN Bipolar 14-Pin CFPAK Tube


5962-8683801DA中文资料参数规格
技术参数

电源电压DC 4.50V ~ 5.50V

输出接口数 1

位数 3

传送延迟时间 26.0 ns

电压波节 5.00 V

逻辑门个数 3

输出电流驱动 -100 µA

输入数 3

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 14

封装 CFP-14

外形尺寸

长度 9.21 mm

宽度 6.29 mm

高度 1.59 mm

封装 CFP-14

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买5962-8683801DA
型号: 5962-8683801DA
制造商: TI 德州仪器
描述:逻辑门 Triple 3-Input Positive-NOR Gates 14-CFP -55 to 125
