八路缓冲器/驱动器，具有三态输出 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS

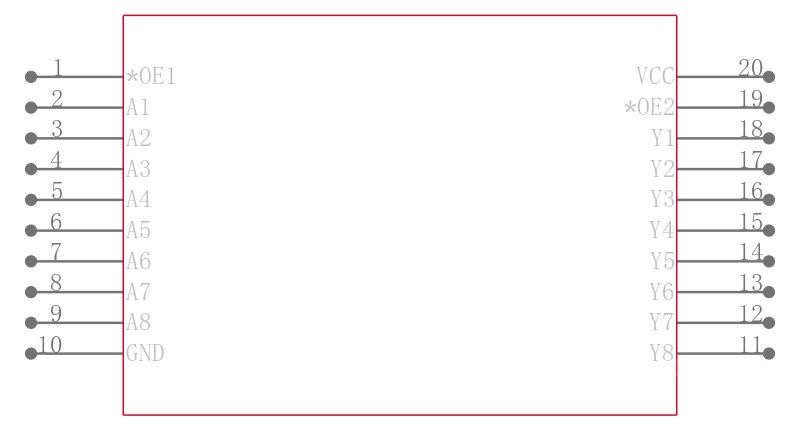

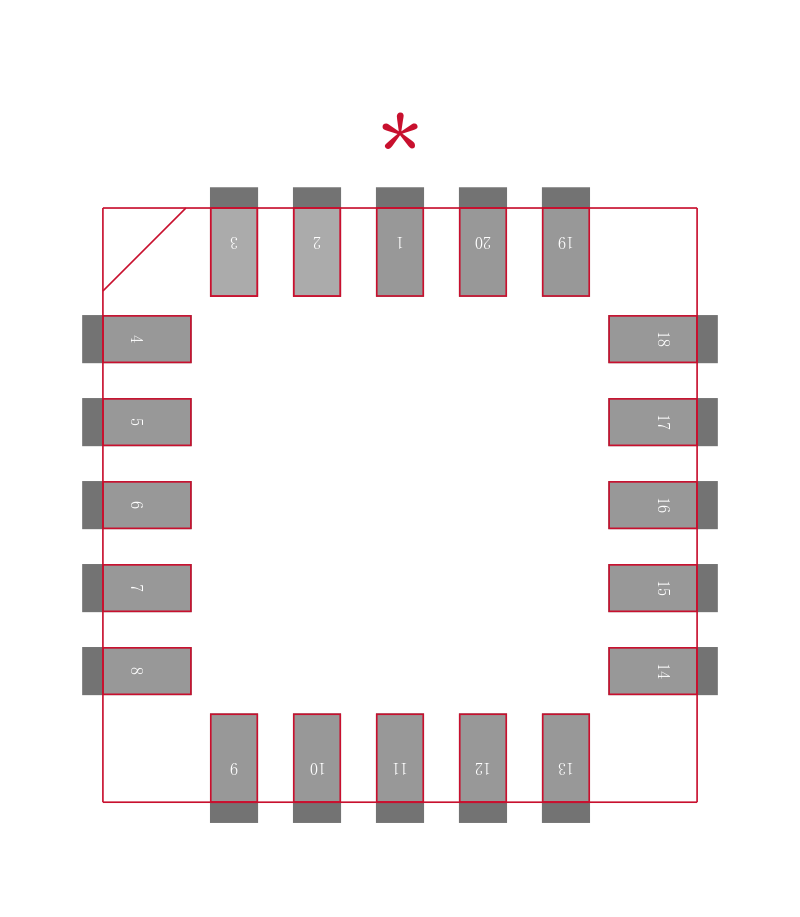

Description
The SN54LVC541A octal buffer/driver is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC541A octal buffer/driver is designed for 1.65-V to 3.6-V VCC operation.
Features
• Operate From 1.65 V to 3.6 V
• Inputs Accept Voltages to 5.5 V
• Max tpd of 5.1 ns at 3.3 V
• Typical VOLP Output Ground Bounce
<0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV Output VOH Undershoot
>2 V at VCC = 3.3 V, TA = 25°C
• Support Mixed-Mode Signal Operation on All Ports 5-V Input/Output Voltage With 3.3-V VCC
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 200-V Machine Model A115-A
– 1000-V Charged-Device Model C101
• On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
Applications
• Servers
• PCs and Notebooks
• Network Switches
• Wearable Health and Wellness Devices
• Telecom Infrastructures
• Electronic Points of Sale
