四路2号线到1线数据选择器/多路复用器 QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS
ordering information
These data selectors/multiplexers contain inverters and drivers to supply full data selection to the four output gates. A separate strobe G input is provided. A 4-bit word is selected from one of two sources and is routed to the four outputs. The ’HC157 devices present true data.
得捷:
SN54HC157 QUADRUPLE 2-LINE TO 1-
立创商城:
5962-86061012A
艾睿:
Is your microprocessor running out of IO ports? Reduce the number of electrical lines with Texas Instruments&s; 5962-86061012A multiplexer, a tool that can easily forward one of many selected lines into a single port! This multiplexer has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It is made in a 4 x 2:1 configuration.
Chip1Stop:

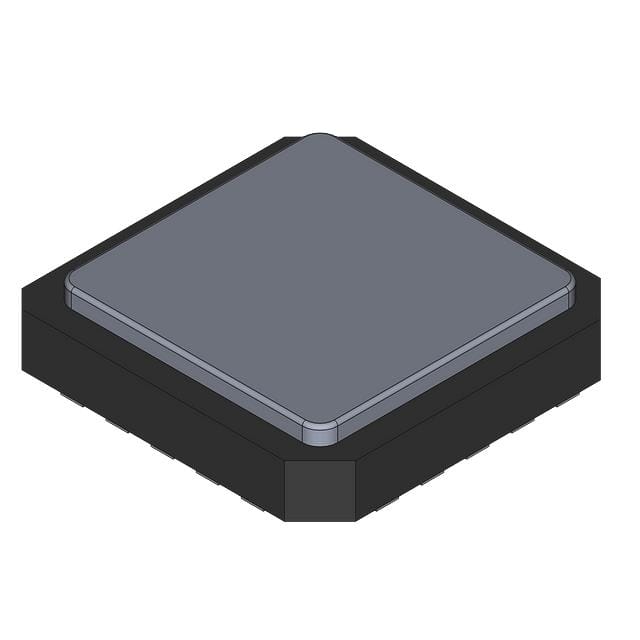

Multiplexer 1-Element CMOS 8-IN 20-Pin LCCC Tube
罗切斯特:
Multiplexer 1-Element CMOS 8-IN 20-Pin CLLCC Tube
