5962-8407101VRA

5962-8407101VRA图片1
5962-8407101VRA图片2
5962-8407101VRA图片3
5962-8407101VRA概述

具有三态输出的八路边沿触发式 D 型触发器 20-CDIP -55 to 125

description/ordering information

These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

Wide Operating Voltage Range of 2 V to 6 V

High-Current 3-State True Outputs Can Drive Up To 15 LSTTL Loads

Eight D-Type Flip-Flops in a Single Package

Full Parallel Access for Loading

Low Power Consumption, 80-µA Max ICC

Typical tpd = 14 ns

±6-mA Output Drive at 5 V

Low Input Current of 1 µA Max

5962-8407101VRA中文资料参数规格
技术参数

电源电压DC 2.00V ~ 6.00V

输出接口数 8

位数 8

电压波节 6.00 V, 5.00 V, 2.00 V

输入数 8

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

引脚数 20

封装 CDIP

外形尺寸

封装 CDIP

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

数据手册

5962-8407101VRA引脚图与封装图

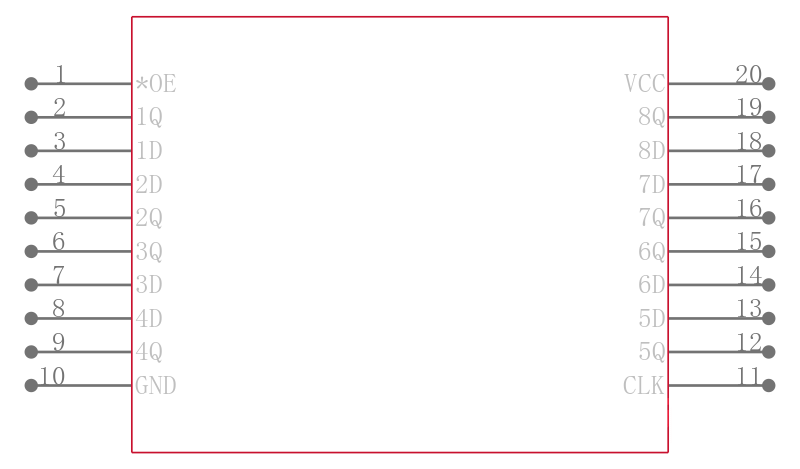

5962-8407101VRA引脚图

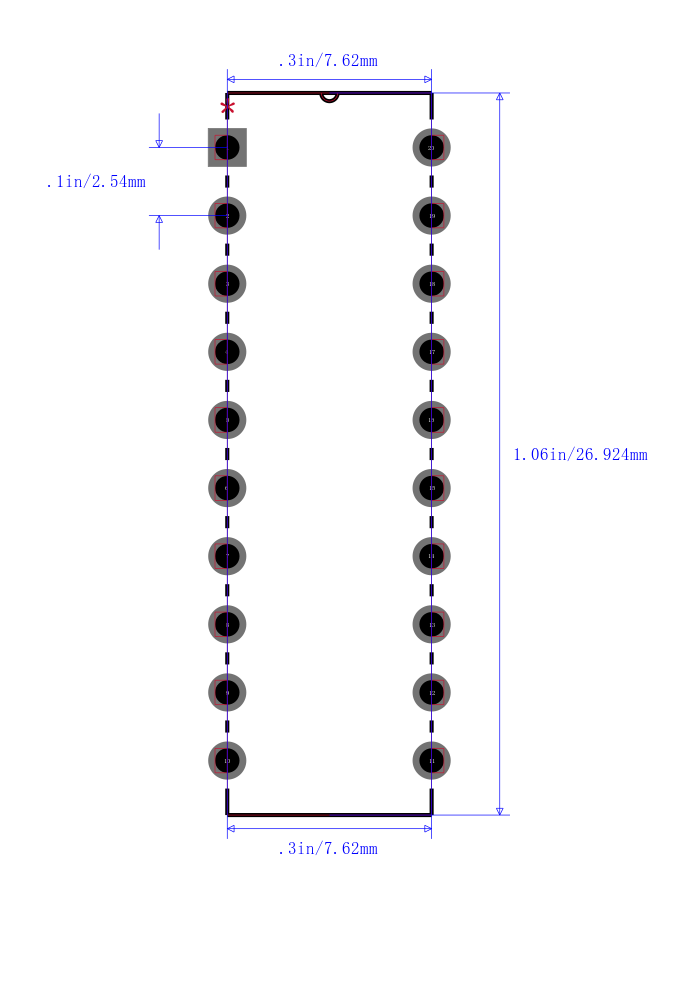

5962-8407101VRA封装图

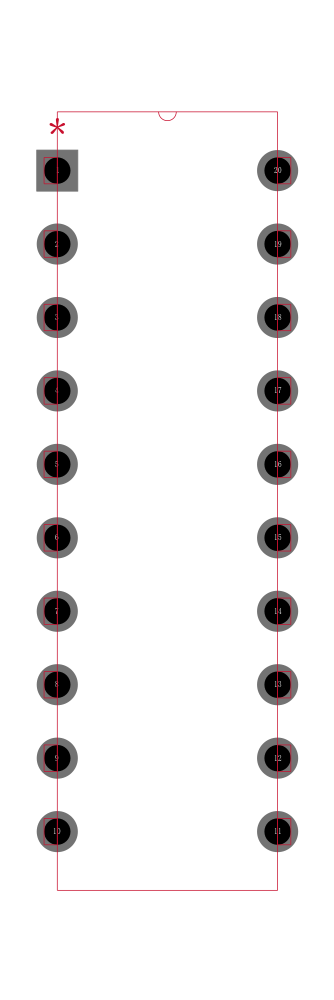

5962-8407101VRA封装焊盘图
在线购买5962-8407101VRA
型号: 5962-8407101VRA
制造商: TI 德州仪器
描述:具有三态输出的八路边沿触发式 D 型触发器 20-CDIP -55 to 125
