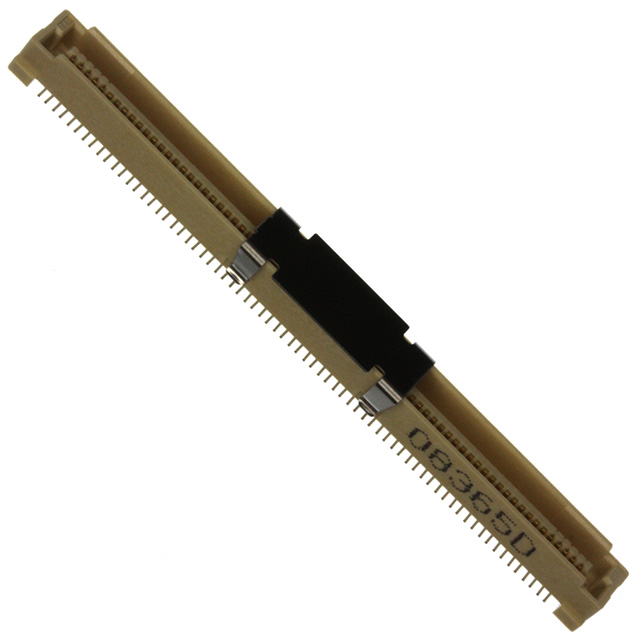

5177986-6

0.4mm, 0.5mm, 0.6mm, 0.8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors

140 位置 插头，中央触点带 表面贴装型 镀金

得捷:
CONN PLUG 140POS SMD GOLD

艾睿:
Think of TE Connectivity&s;s fine pitch connector 5177986-6 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This PL connector&s;s 140 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.8 mm. It has a maximum voltage rating of 100 VAC. It has a plug type gender. This is a 2-row connector. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It uses the solder termination method. This product is 61.8 mm long, 5.6 mm tall and 6 mm deep. This connector has an operating temperature of -40 to 85 °C. 5177986-6 is housed in natural liquid crystal polymer.

安富利:
Conn Fine Pitch Connector PL 140 POS 0.8mm Solder ST SMD T/R

Chip1Stop:
Conn Fine Pitch Connector PL 140 POS 0.8mm Solder ST SMD T/R

Verical:
Conn Fine Pitch Connector PL 140 POS 0.8mm Solder ST SMD T/R

MASTER:
Conn Fine Pitch Connector PL 140 POS 0.8mm Solder ST SMD T/R

Powell:
.4mm, .5mm, .6mm, .8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors

Electro Sonic:
Conn Fine Pitch Connector PL 140 POS 0.8mm Solder ST SMD T/R
