0.4mm, 0.5mm, 0.6mm, 0.8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors
64 位置 插座,外罩触点 表面贴装型 镀金
得捷:
CONN RCPT 64POS SMD GOLD
贸泽:
Board to Board & Mezzanine Connectors 1.0MM-XXH REC 2X032P WITH LOCATING POSTS
艾睿:

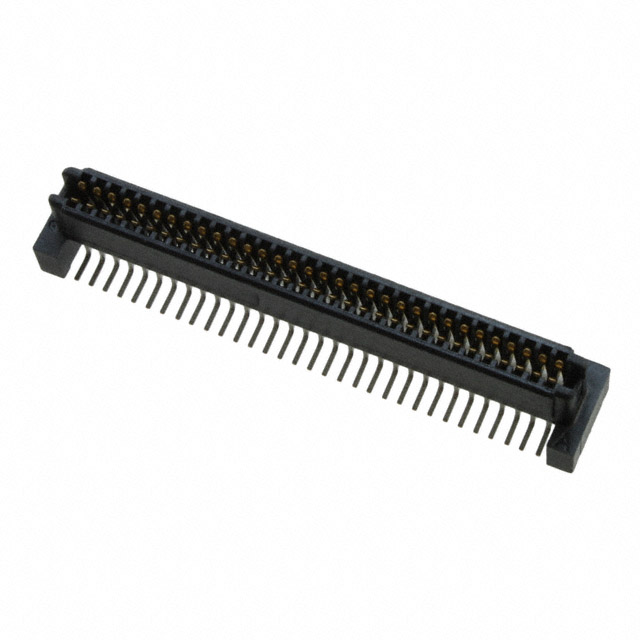

Think of TE Connectivity&s;s ieee 1386 5120603-1 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This RCP connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 1 mm. It has a receptacle type gender. This device has a maximum current rating of 1 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. 5120603-1 is housed in thermoplastic. This product is 35.9 mm long, 7.37 mm tall and 6.05 mm deep. It uses the solder termination method.
Allied Electronics:
1mm Free Height IEEE 1386 Products; 1FHR, 64, 30A/S, S, N, S11, 12
安富利:
Conn IEEE 1386 RCP 64 POS 1mm Solder ST SMD T/R
Verical:
Conn IEEE 1386 RCP 64 POS 1mm Solder ST SMD T/R
Newark:
# AMP - TE CONNECTIVITY 5120603-1 Stacking Board Connector, FSI Series, 64 Contacts, Receptacle, 1 mm, Surface Mount, 2 Rows
MASTER:
RECEPTACLE ASSY, 1.0mm FHIEEE1386 CONNECTOR
Powell:
.4mm, .5mm, .6mm, .8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors
Electro Sonic:
1FHR,64,30A/S,S,N,S11,12
触点数 64
极性 Female
触点电镀 Gold, Tin, Tin over Nickel
额定电流 500 mA
绝缘电阻 2 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 64
拔插次数 100
额定电流Max 1A/触头
工作温度Max 110 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 50 V
接触电阻Max 30 mΩ
安装方式 Surface Mount
封装 SMD
引脚间距 1.00 mm
高度 7.37 mm
封装 SMD
引脚间距 1.00 mm
外壳颜色 Black
触点材质 Phosphor Bronze
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
