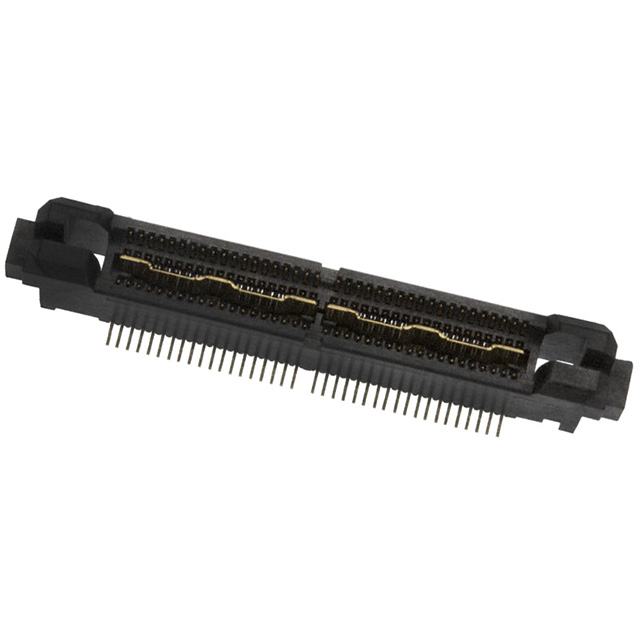

MICTOR 76 位置 表面贴装 直 板对板 插头
MICT,260PLUG,76,ASSY,.025,REC
Product Highlights
Connector
Plug
Mated Stack Height Vertical = 6.60 mm, 15.62 mm
Number of Positions = 76
Vertical Mount Angle
得捷:
CONN PLUG 76POS SMD GOLD
立创商城:
5767007-9
艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s high speed fine pitch connector 5767007-9 header connector helps protect your equipment from accidental shortages. This PL connector&s;s 76 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2.54/0.64 mm. It has a maximum voltage rating of 30 VAC. It has a straight body orientation. It has a plug type gender. This is a 2-row connector. This device has a maximum current rating of 11.5/1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. 5767007-9 is housed in black liquid crystal polymer. This product is 38.1 mm long, 6.53 mm tall and 5.28 mm deep.
安富利:
Conn High Speed Fine Pitch Connector PL 76 POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Tube
Chip1Stop:
Conn High Speed Fine Pitch Connector PL 76 POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Tube
Verical:
Conn High Speed Fine Pitch Connector PL 2Power/76Signal POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Tube
MASTER:
PLUG ASSEMBLY, .260[6.6] VERTICAL, .025[0.64]CL, GULL WING LEADS, MICTOR
Powell:
.025 [0.64] Centerline Matched Impedance Connector MICTOR
Online Components:
MICT,260PLUG,76,ASSY,.025,REC
Electro Sonic:
MICT,260PLUG,76,ASSY,.025,REC
Win Source:
CONN PLUG 76POS SMD GOLD / 76 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
触点数 76
极性 Male
触点电镀 Gold, Tin
额定电压AC 30.0 V
额定电流 7.60 A
绝缘电阻 10.0 GΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 76
额定电流Max 11.5A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 30 VAC
接触电阻Max 10 mΩ
安装方式 Surface Mount
封装 -
引脚间距 635 µm
长度 38.1 mm
宽度 5.28 mm
高度 6.53 mm
封装 -
引脚间距 635 µm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
绝缘材质 Polyester
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
5767007-9 TE Connectivity 泰科 | 当前型号 | 当前型号 |
767007-9 泰科 | 功能相似 | 5767007-9和767007-9的区别 |
