5046224010

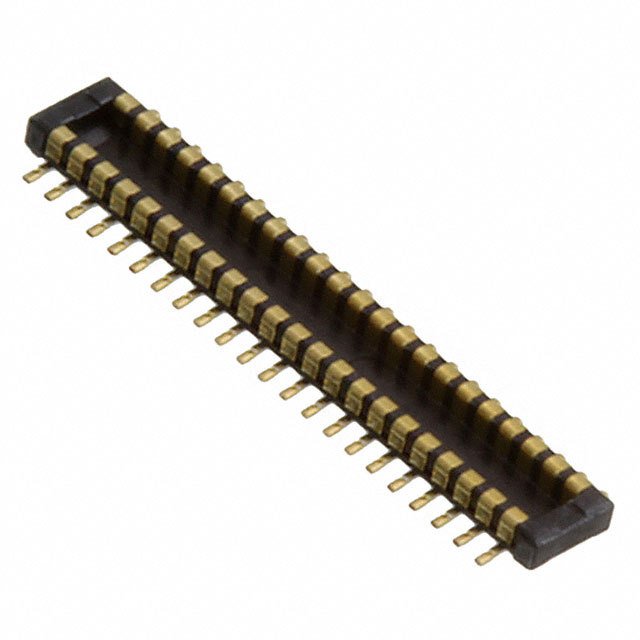

0.35mm Pitch SlimStack™ SSB6 Board-to-Board Plug Connector, Surface Mount, Dual Row, Vertical, 0.6mm Stacking Height, 2mm Width, 40Circuits

40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

得捷:
CONN PLUG 40POS SMD GOLD

艾睿:
This board to board 5046224010 header connector from Molex is used for jumper posts to support physical configuration options on printed circuit boards. This PL connector&s;s 40 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.35 mm. This is a 2-row connector. It has a plug type gender. It has a maximum voltage rating of 50 VDC|50VAC. This device has a maximum current rating of 0.3 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 8.29 mm long, 0.48 mm tall and 2 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 85 °C. 5046224010 is housed in black liquid crystal polymer.

安富利:
0.35mm Pitch SlimStack SSB6 Board-to-Board Plug Connector, Surface Mount, Dual Row, Vertical, 0.60mm Stacking Height, 2.00mm Width, 40 Circuits

Verical:
Conn Board to Board PL 40 POS 0.35mm Solder ST SMD SlimStack™ T/R
