5003340300

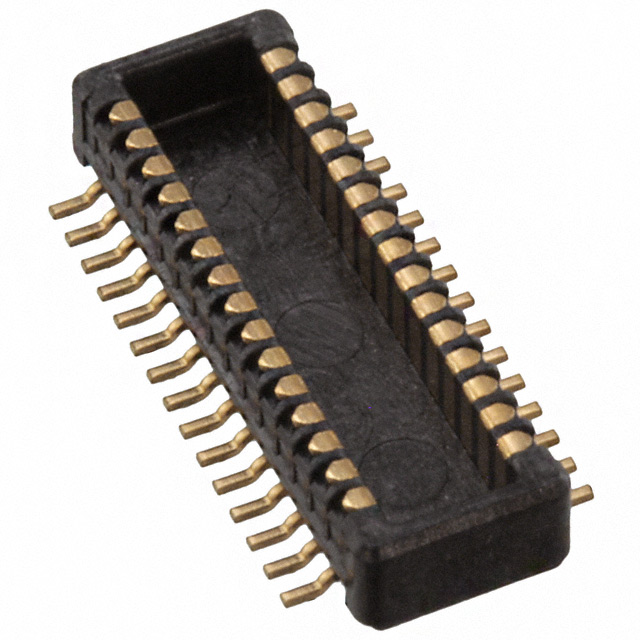

0.50毫米（ 0.020 “ ）间距SlimStack插头，表面贴装，双排，垂直， 2.50毫米（ .098 ” ）堆叠高度， 30电路 0.50mm .020" Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm .098" Stack Height, 30 Circuits

30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

得捷:
CONN PLUG 30POS SMD GOLD

立创商城:
5003340300

艾睿:
Molex&s;s board to board 5003340300 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This PL connector&s;s 30 contacts that are made out of brass and plated with gold over nickel. Its pitch is 0.5 mm. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 50 V. It has a plug type gender. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This connector has an operating temperature of -40 to 85 °C. 5003340300 is housed in black glass filled liquid crystal polymer. This product is 8.95 mm long, 1.48 mm tall and 4.2 mm deep. It uses the solder termination method.

安富利:
Conn Board to Board PL 30 POS 0.5mm Solder ST SMD Embossed T/R

Chip1Stop:
Conn Board to Board PL 30 POS 0.5mm Solder ST SMD Embossed T/R

Verical:
Conn Board to Board PL 30 POS 0.5mm Solder ST SMD SlimStack™ T/R
