5019204001

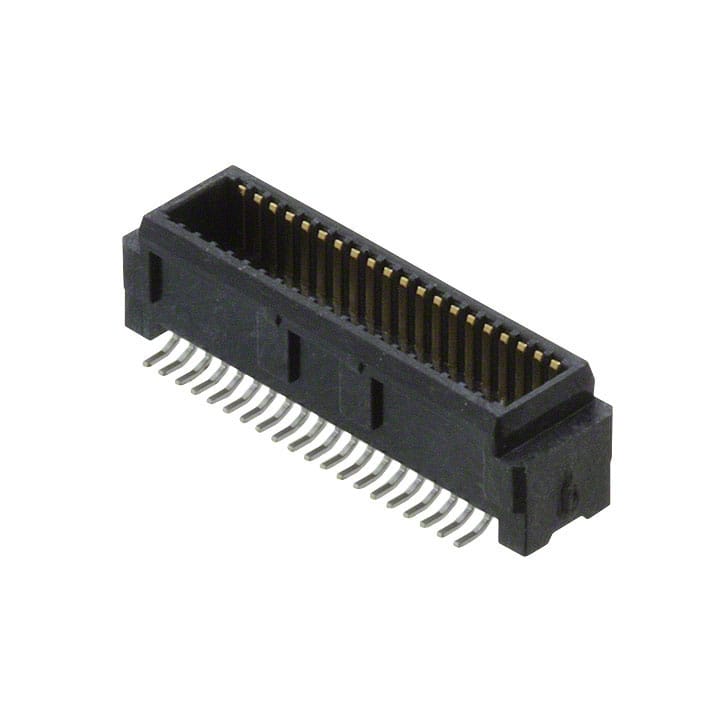

0.50毫米（ 0.020 “ ）间距SlimStack板对板插头， SMT ，双排，垂直叠加 0.50mm .020" Pitch SlimStack Board-to-Board Plug, SMT, Dual Row, Vertical Stacking

40 位置 插头，外罩触点 表面贴装型 镀金

得捷:
CONN PLUG 40POS SMD GOLD

立创商城:
5019204001

艾睿:
Reduce safety concerns with this board to board 5019204001 header connector from Molex which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This PL connector&s;s 40 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.5 mm. This is a 2-row connector. It has a plug type gender. It has a maximum voltage rating of 50 VDC|50VAC. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 12.3 mm long, 3.42 mm tall and 3.1 mm deep. 5019204001 is housed in black liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C.

安富利:
Conn Board to Board PL 40 POS 0.5mm Solder ST SMD Embossed T/R

Verical:
Conn Board to Board PL 40 POS 0.5mm Solder ST SMD SlimStack™ T/R

Win Source:
40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
