5-5177986-3

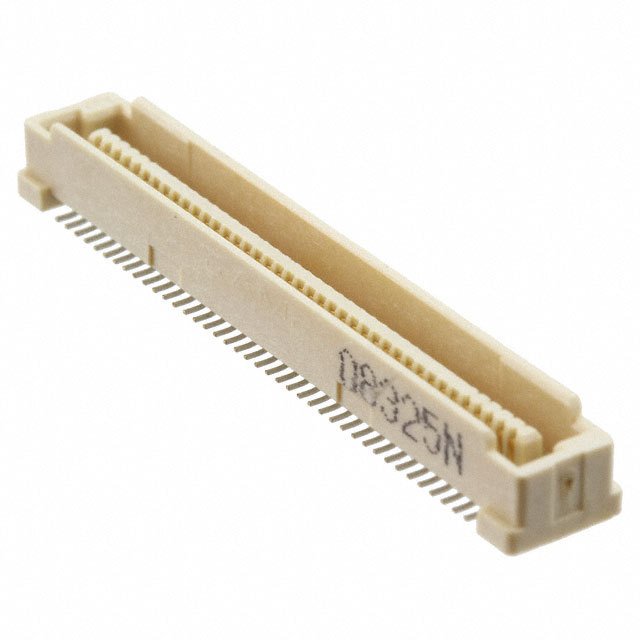

5-5177986-3图片1
5-5177986-3图片2
5-5177986-3图片3
5-5177986-3图片4
5-5177986-3图片5
5-5177986-3图片6
5-5177986-3概述

0.4mm, 0.5mm, 0.6mm, 0.8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors

80 位置 插头,中央触点带 表面贴装型 镀金


得捷:
CONN PLUG 80POS SMD GOLD


艾睿:
Protect your printed circuit boards from accidental damages with TE Connectivity&s;s fine pitch connector 5-5177986-3 header connector. This PL connector&s;s 80 contacts that are made out of copper alloy and plated with gold over nickel. It has a plug type gender. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 100 VAC. Its pitch is 0.8 mm. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 37.8 mm long, 4.6 mm tall and 6 mm deep. This connector has an operating temperature of -40 to 85 °C. It uses the solder termination method. 5-5177986-3 is housed in natural liquid crystal polymer.


安富利:
Conn Fine Pitch Connector PL 80 POS 0.8mm Solder ST SMD T/R


Powell:
.4mm, .5mm, .6mm, .8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors


5-5177986-3中文资料参数规格
技术参数

触点数 80

触点电镀 Gold, Tin over Nickel

排数 2

方向 Vertical

易燃性等级 UL 94 V-0

针脚数 80

额定电流Max 0.5A/触头

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压Max 100 VAC

接触电阻Max 30 mΩ

封装参数

安装方式 Surface Mount

外形尺寸

高度 4.6 mm

物理参数

外壳颜色 Natural

触点材质 Copper Alloy

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册

在线购买5-5177986-3
型号: 5-5177986-3
描述:0.4mm, 0.5mm, 0.6mm, 0.8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors
