5-5177986-4

0.4mm, 0.5mm, 0.6mm, 0.8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors

100 位置 插头，中央触点带 表面贴装型 镀金

得捷:
CONN PLUG 100POS SMD GOLD

艾睿:

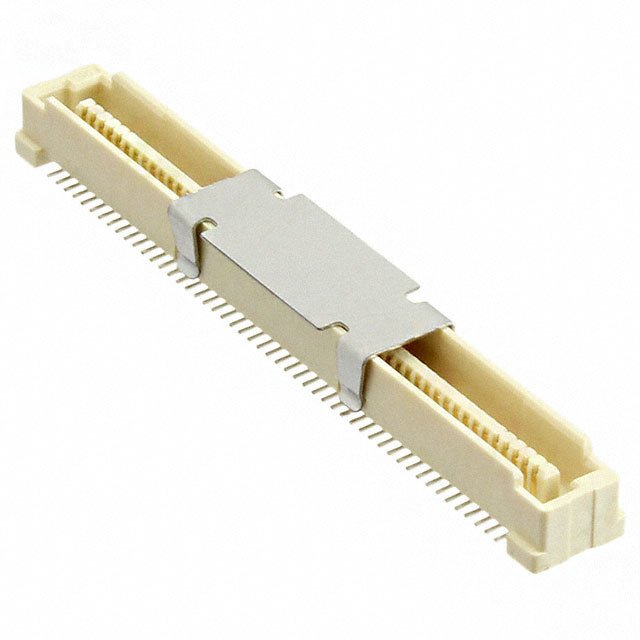

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this fine pitch connector 5-5177986-4 header connector from TE Connectivity. This PL connector&s;s 100 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. It has a plug type gender. It has a maximum voltage rating of 100 VAC. This is a 2-row connector. Its pitch is 0.8 mm. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This connector has an operating temperature of -40 to 85 °C. This product is 45.8 mm long, 4.6 mm tall and 6 mm deep. It uses the solder termination method. 5-5177986-4 is housed in natural liquid crystal polymer.

安富利:
Conn Fine Pitch Connector PL 100 POS 0.8mm Solder ST SMD T/R

Chip1Stop:
Conn Fine Pitch Connector PL 100 POS 0.8mm Solder ST SMD T/R

Powell:
.4mm, .5mm, .6mm, .8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors
