板对板与夹层连接器 .6FHP04H 070 S STD 08/Sn ST NSYes

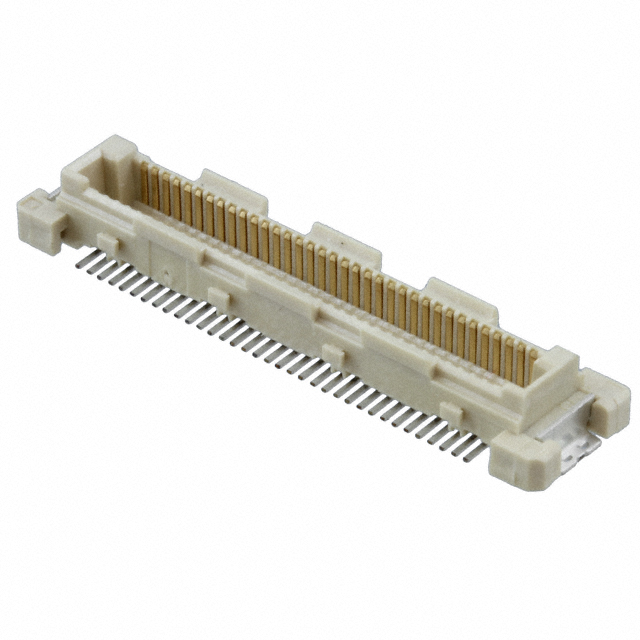

Conn Fine Pitch Connector PL 70 POS 0.6mm Solder ST SMD Tray
得捷:
CONN PLUG 70POS SMD GOLD
贸泽:
板对板与夹层连接器 .6FHP04H 070 S STD 08/Sn ST NSYes
艾睿:
Conn Fine Pitch Connector PL 70 POS 0.6mm Solder ST SMD Tray
Verical:
Conn Fine Pitch Connector PL 70 POS 0.6mm Solder ST SMD Tray
Online Components:
Conn Fine Pitch Connector PL 70 POS 0.6mm Solder ST SMD Tray
Electro Sonic:
Conn Fine Pitch Connector PL 70 POS 0.6mm Solder ST SMD Tray
触点数 70
触点电镀 Gold, Tin
绝缘电阻 500 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 70
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 50 VAC
安装方式 Surface Mount
高度 3.45 mm
外壳颜色 Natural
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Obsolete
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
