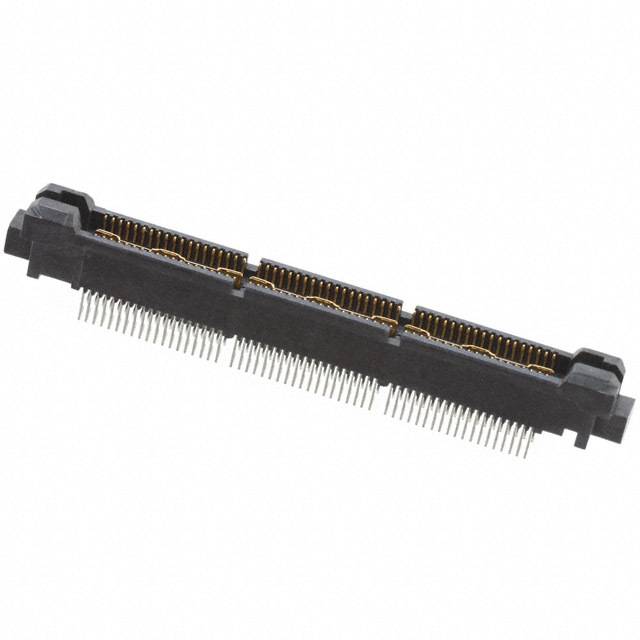

5767006-3

MICTOR 114 位置 表面贴装 直角 板对板 针座

MICT,R/APLUG,114,ASY,.025,.062

Product Highlights

Connector

Plug

Number of Positions = 114

Right Angle Mount Angle

Packaging Method = Tube

得捷:
CONN PLUG 114POS EDGE MNT GOLD

贸泽:
Board to Board & Mezzanine Connectors MICT,R/APLUG,114,ASY .025,.062

艾睿:
Mount this high speed fine pitch connector 5767006-3 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This PL connector&s;s 114 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 30 VAC. It has a plug type gender. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54/0.64 mm. This device has a maximum current rating of 11.5/1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. 5767006-3 is housed in black liquid crystal polymer. This product is 50.8 mm long, 5.28 mm tall and 6.38 mm deep.

安富利:
Conn High Speed Fine Pitch Connector PL 114 POS 2.54mm/0.64mm Solder ST Edge Mount Tube

Verical:
Conn High Speed Fine Pitch Connector PL 3Power/114Signal POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Tube

Newark:
# AMP - TE CONNECTIVITY  5767006-3  Stacking Board Connector, QSH Series, 114 Contacts, Plug, 0.64 mm, Through Hole, 2 Rows

Powell:
.025 [0.64] Centerline Matched Impedance Connector MICTOR

Online Components:
MICT,R/APLUG,114,ASY,.025,.062

Electro Sonic:
MICT,R/APLUG,114,ASY,.025,.062
