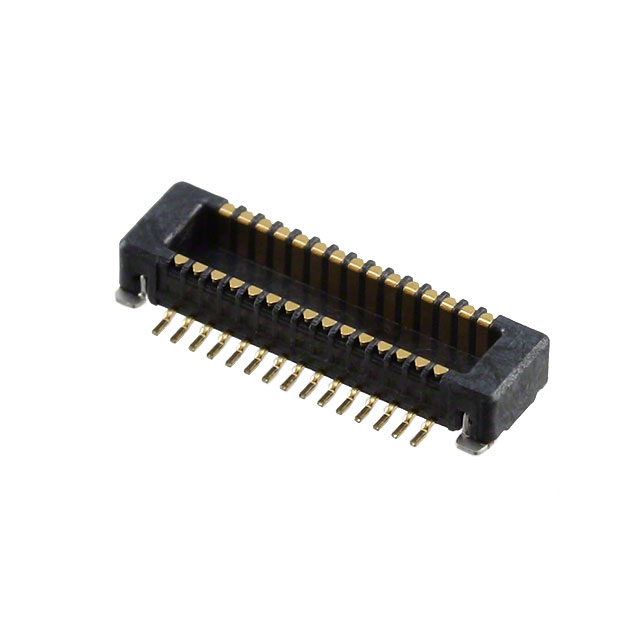

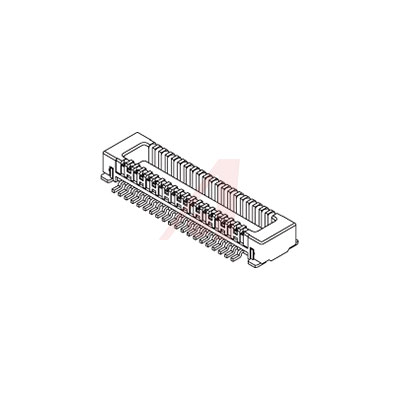

0.50毫米( 0.020 “ )间距SlimStack ™插件,表面贴装,双排,垂直, 2.00毫米( .079 ” )堆叠高度,用焊片, 30电路,无铅 0.50mm .020" Pitch SlimStack™ Plug, Surface Mount, Dual Row, Vertical, 2.00mm .079" Stack Height, with Solder Tab, 30 Circuits, Lead-free
SlimStack™ Fine-Pitch SMT Board-to-Board Connectors
Ideal for tight-packaging applications such as mobile phones, SlimStack™ fine-pitch connectors offer a wide selection of low-profile, narrow width options in various stack heights and circuit sizes for space savings and design flexibility. SlimStack™ high-speed micro-miniature board-to-board stacking connectors with speeds up to 20 Gbps and pitch sizes ranging from 0.35 to 1.00mm provide space-saving design flexibility that is ideal for a variety of wireless or portable applications in the Datacom, Telecom and Medical industries. Also available in hybrid power/signal versions that can deliver up to 6.0A of power, and metal cover “Armor" versions that protect housings from damage even when misaligned during mating.
触点数 30
极性 Male
触点电镀 Gold
额定电压DC 50.0 V
额定电流 500 mA
排数 2
灼热丝测试标准 Non-Compliant
无卤素状态 Low Halogen
方向 Vertical
电路数 30
易燃性等级 UL 94 V-0
针脚数 30
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -25 ℃
安装方式 Surface Mount
引脚间距 500 µm
长度 10.3 mm
宽度 3.43 mm
高度 1.59 mm
引脚间距 500 µm
接插高度 2.00 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
材质 Brass
外壳材质 Plastic
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
