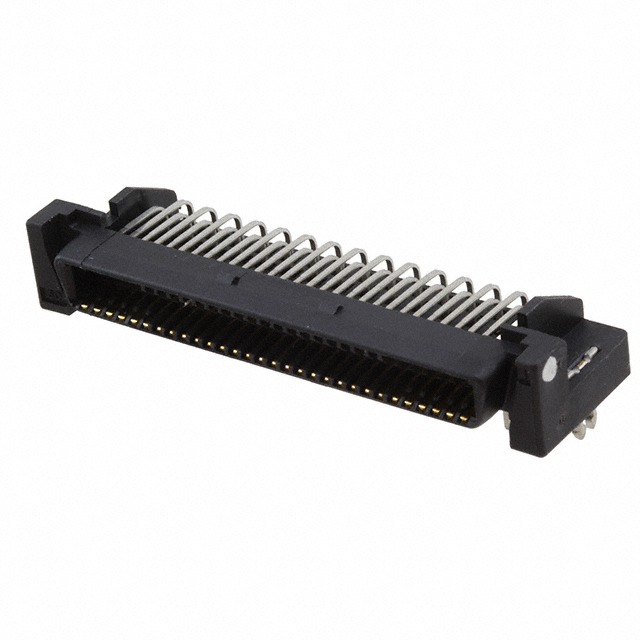

Conn SCSI RCP 60POS 1.27mm Solder RA Thru-Hole 60 Terminal 1Port
60 位置 插座,外罩触点 通孔,直角 镀金
得捷:
CONN RCPT 60POS R/A GOLD
艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this 5176379-2 SCSI connector from 5176379-2 in order to interface with each other. This RCP connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold. It has a right angle body orientation. Its pitch is 1.27 mm. This connector has a single port. It has a receptacle type gender. 5176379-2 is housed in nylon. Its 60 terminals use the solder termination method.
安富利:
Conn SCSI RCP 60 POS 1.27mm Solder RA Thru-Hole 60 Terminal 1 Port
MASTER:
Champ Receptacles Connector for PCB
Electro Sonic:
REC ASS"YH 60P 1.27FHBB
触点数 60
极性 Female
触点电镀 Gold, Tin
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 60
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
安装方式 Through Hole
高度 8.5 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
外壳材质 Nylon
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
