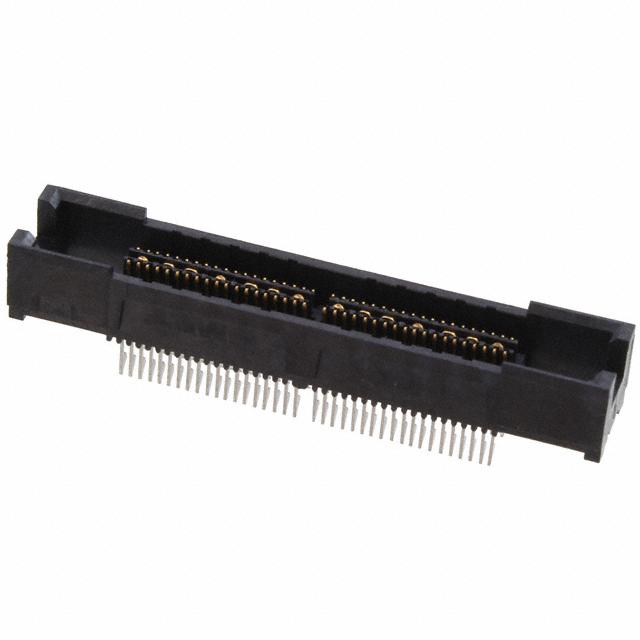

Conn High Speed Fine Pitch Connector RCP 76POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Tube
76 位置 连接器 插座,中央带触点 板边缘,跨骑式安装 镀金
得捷:
CONN RCPT 76POS EDGE MNT GOLD
贸泽:
Board to Board & Mezzanine Connectors MICTOR,R/A,RECPT .062,076,ASY
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this high speed fine pitch connector 5767044-2 header connector from TE Connectivity. This RCP connector&s;s 76 contacts that are made out of copper alloy and plated with gold over palladium nickel. It has a receptacle type gender. This is a 2-row connector. Its pitch is 2.54/0.64 mm. It has a straight body orientation. It has a maximum voltage rating of 30 VAC. This device has a maximum current rating of 11.5/1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. 5767044-2 is housed in black liquid crystal polymer. This product is 38.1 mm long, 6.91 mm tall and 9.75 mm deep.
Verical:
Conn High Speed Fine Pitch Connector RCP 2Power/76Signal POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Box/Tube
MASTER:
RECEPTACLE ASSEMBLY, RIGHT ANGLE, .025[0.64] CENTER LINE, .062[1.57] PCB, MICTOR
Powell:
.025 [0.64] Centerline Matched Impedance Connector MICTOR
Electro Sonic:
MICTOR,R/A,RECPT,.062,076,ASY
触点数 76
极性 Female
触点电镀 Nickel, Tin
排数 2
易燃性等级 UL 94 V-0
针脚数 76
额定电流Max 11.5A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 30 VAC
接触电阻Max 10 mΩ
安装方式 Solder
高度 6.91 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
