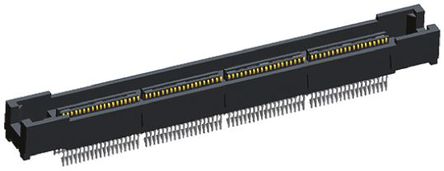

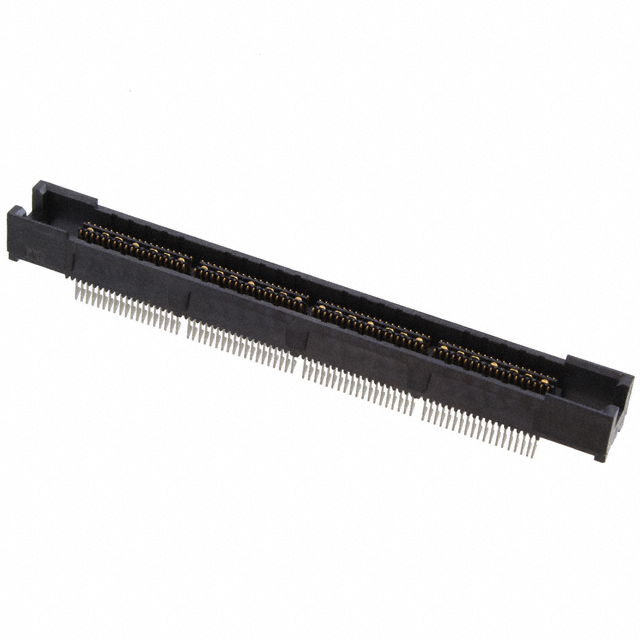

Parallel Board to Board Right Angle Receptacle and Plug Connectors - MICTORParallel board to board right angle fine pitch SMT stacking connectors with 0.64mm centreline spacing. These MICTOR SMT board to board stacking connectors are designed for 50 ohm systems and have redundant interfaces on mated contacts for added reliability, polarized connector housings to ensure correct mating and a built-in connector-to-board retention feature. The housings for these fine pitch board to board SMT stacking connectors are made from liquid crystal polymer which is compatible with infrared and forced air convection operations. A solid ground bus is used between the rows of signals to provide low crosstalk and excellent high-speed signal characteristics.### 0.64mm 板对板 - TE Connectivity 匹配阻抗连接器MICTOR
高速 MICTOR 堆叠
MICTOR(匹配阻抗连接器)高速堆叠连接器采用高密封设计,用于高速数据交换应用,具有 10+ Gbit/s 的极佳性能。MICTOR 是 2 件式模块化系统,包括印刷电路板插头和连接器。MICTOR 连接器采用微型条状设计,每个连接器包含两排信号触点,通过一个中心接地平面隔开,支持高速操作。该信号引脚采用每线性英寸 76 个信号引脚的高密度配置。连接器尺寸范围为 38 至 266 个信号线路,增量为 38 个位置。在 MICTOR 连接器中,每隔 38 个位置就有一个分离式接地总线,可任意组合分配给电源或接地。这些 MICTOR 连接器使用冗余触点双光束触点设计,提供高电气可靠性。这些高速 MICTOR 连接器的外壳经过极化,可防止错配。印刷电路板固定功能还确保与印刷电路板牢固连接。这些 MICTOR 连接器提供各种配接高度,用于板到板应用,也可用于直角、共面和电缆到板应用。
### 特点和优势
卓越性能,可达 10+ Gbit/s
微型条状设计
高密度设计,每线性英寸具有 76 个信号引脚
38 至 266 信号线路,增量为 38 个位置
冗余触点,用于提高电气可靠性
各种配接高度,用于板对板应用
极化以防止错配
印刷电路板固定功能
适用于自动化装配过程
### TE Connectivity MICTOR 高速堆叠连接器
