5015941211

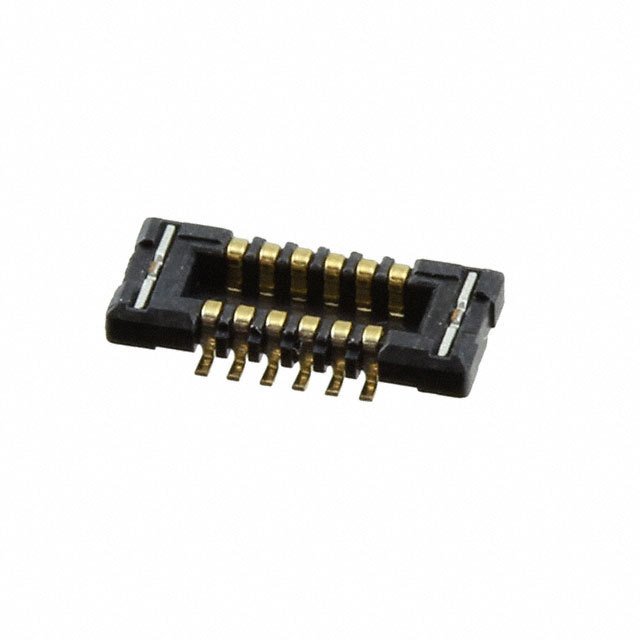

0.40毫米（ 0.016 “ ）间距SlimStack板对板插头， SMT ，双排，垂直叠加 0.40mm .016" Pitch SlimStack Board-to-Board Plug, SMT, Dual Row, Vertical Stacking

12 位置 插头，外罩触点 表面贴装型 镀金

得捷:
CONN PLUG 12POS VERT .4MM SL SMD

艾睿:
Look no further than the board to board 5015941211 header connector from Molex, a great tool to use when board-to-board interconnects is required. This PL connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold. This is a 2-row connector. It has a maximum voltage rating of 50 VDC|50VAC. It has a plug type gender. It has a straight body orientation. Its pitch is 0.4 mm. This device has a maximum current rating of 0.3 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. 5015941211 is housed in black glass filled liquid crystal polymer. It uses the solder termination method. This product is 4.45 mm long, 0.71 mm tall and 1.99 mm deep. This connector has an operating temperature of -25 to 85 °C.

安富利:
Conn Board to Board PL 12 POS 0.4mm Solder ST SMD Embossed T/R

Chip1Stop:
Conn Board to Board PL 12 POS 0.4mm Solder ST SMD Embossed T/R

Verical:
Conn Board to Board PL 12 POS 0.4mm Solder ST SMD SlimStack™ T/R
