5009130602

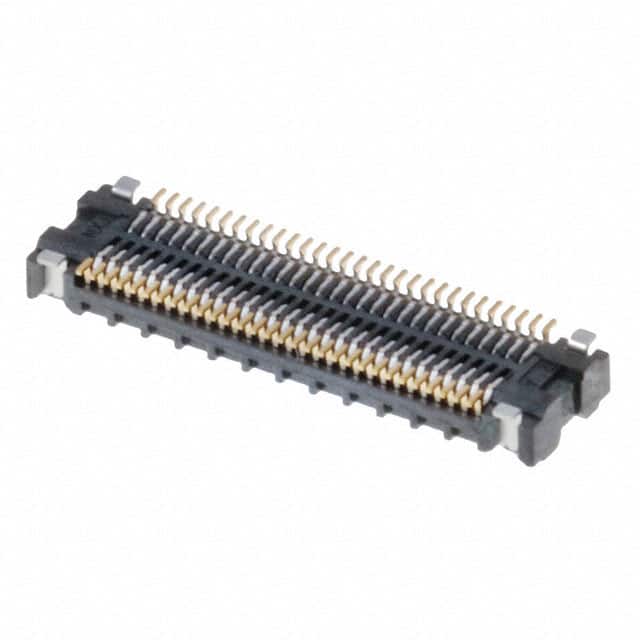

0.40毫米（ 0.016 “ ）间距SlimStack板对板PCB插座，表面贴装，双排，垂直叠加 0.40mm .016" Pitch SlimStack Board-to-Board PCB Receptacle, Surface Mount, Dual Row, Vertical Stacking

60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

得捷:
CONN RCPT 60POS 0.4MM SMD GOLD

艾睿:
Reduce safety concerns with this board to board 5009130602 header connector from Molex which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This RCP connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 50 VDC|50VAC. This is a 2-row connector. Its pitch is 0.4 mm. This device has a maximum current rating of 0.3 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It uses the solder termination method. This product is 15.1 mm long and 4.2 mm. 5009130602 is housed in black liquid crystal polymer. This connector has an operating temperature of -25 to 85 °C.

安富利:
Conn Board to Board RCP 60 POS 0.4mm Solder ST SMD Embossed T/R

Verical:
Conn Board to Board RCP 60 POS 0.4mm Solder ST SMD SlimStack™ T/R
