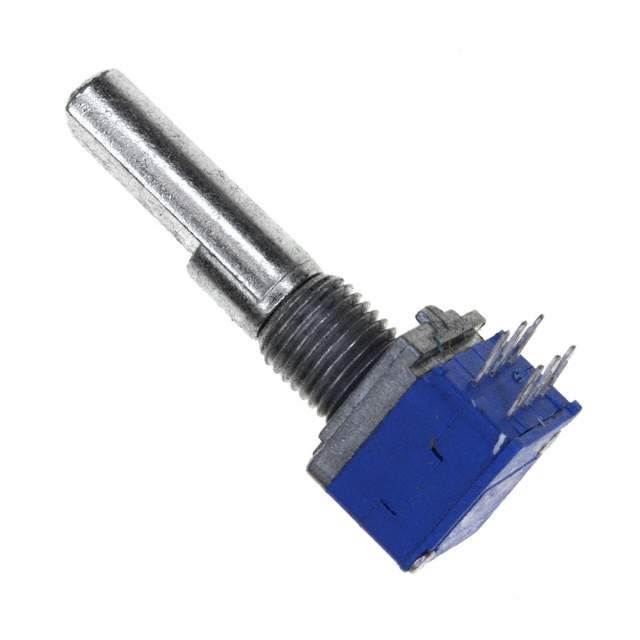

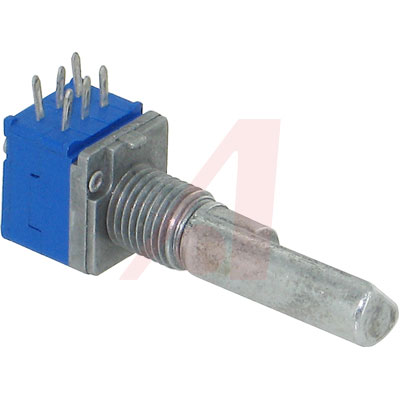

585DX4Q25F103SP

电位计 10K Ohm 20% 1/20W 6mm

These commercial potentiometers feature carbon composition elements, quiet electrical output, smooth feel, robust construction and have 10,000 rotational life cycles. Stocked units have linear taper, ±20% tolerance, 300° mechanical rotation and and are not sealed for washing. The housing is plastic, the shaft and bushing are metal and the three pins are in-line. Locating pin is at 6 o"clock.

.

* Power:** 0.05 watt @ 70°C. Multiple sections, other tapers, resistance values, shaft style and length, and detent are available as special order items. No hardware is included.
