575SX1A48F103SS概述

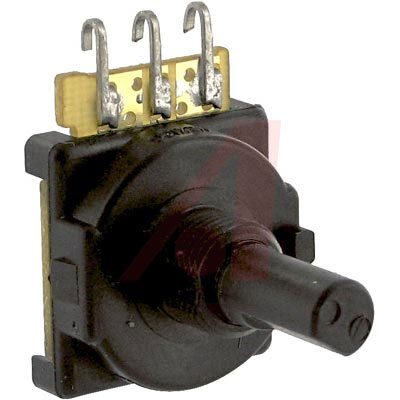

Res Conductive Plastic POT 10KΩ 20% 0.5W1/2W 1Elec/1MechTurn 6.35mm 27.76 X 21.08mm J-Hook Panel Mount

These commercial potentiometers feature conductive plastic elements, quiet electrical output, smooth feel, robust construction and have 50,000 cycles rotational life. The units have linear taper, ±20% tolerance, 270° nominal effective electrical rotation and 300° nominal effective mechanical rotation and are not sealed for washing. The housing, bushing and shaft are made from black molded thermoplastic. The wiper is a metal contact spring. Stocked units utilize three in-line solder hook terminals. The locating pin is at 9 o"clock.
.
* Shaft Length:** 3/4". The bushing mount unit is 0.5 watt @ 70°C. Other mechanical configurations, mounting brackets, taps, bushing and shaft length, resistance values, tapers, and terminal configurations are available as special order items. No hardware is included.
575SX1A48F103SS中文资料参数规格
技术参数

容差 ±20 %

额定功率 0.5 W

电阻 10 kΩ

阻值偏差 ±20 %

工作温度Max 120 ℃

工作温度Min -40 ℃

封装参数

安装方式 Solder Lug, Panel

外形尺寸

长度 21.1 mm

宽度 21.1 mm

高度 8.71 mm

物理参数

工作温度 -40℃ ~ 120℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533408070

数据手册

在线购买575SX1A48F103SS
型号: 575SX1A48F103SS
描述:Res Conductive Plastic POT 10KΩ 20% 0.5W1/2W 1Elec/1MechTurn 6.35mm 27.76 X 21.08mm J-Hook Panel Mount
