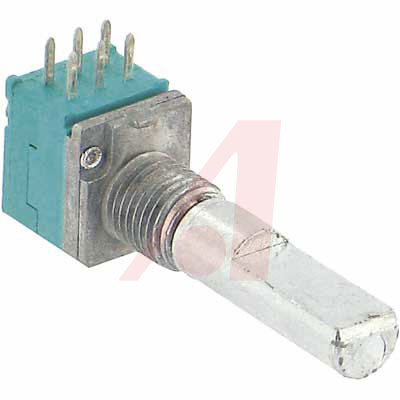

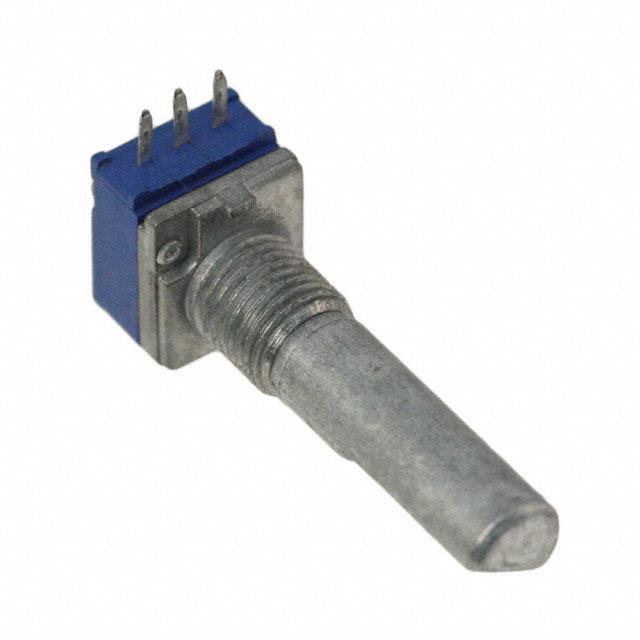

585SX4Q25F502SP

Res Carbon Composition POT 5KΩ 20% 0.05W1/20W 1MechTurns 6mm 19.5 X 9.5 X 11.35mm Pin Panel Mount/Through Hole

These commercial potentiometers feature carbon composition elements, quiet electrical output, smooth feel, robust construction and have 10,000 rotational life cycles. Stocked units have linear taper, ±20% tolerance, 300° mechanical rotation and and are not sealed for washing. The housing is plastic, the shaft and bushing are metal and the three pins are in-line. Locating pin is at 6 o"clock.

.

* Power:** 0.05 watt @ 70°C. Multiple sections, other tapers, resistance values, shaft style and length, and detent are available as special order items. No hardware is included.
