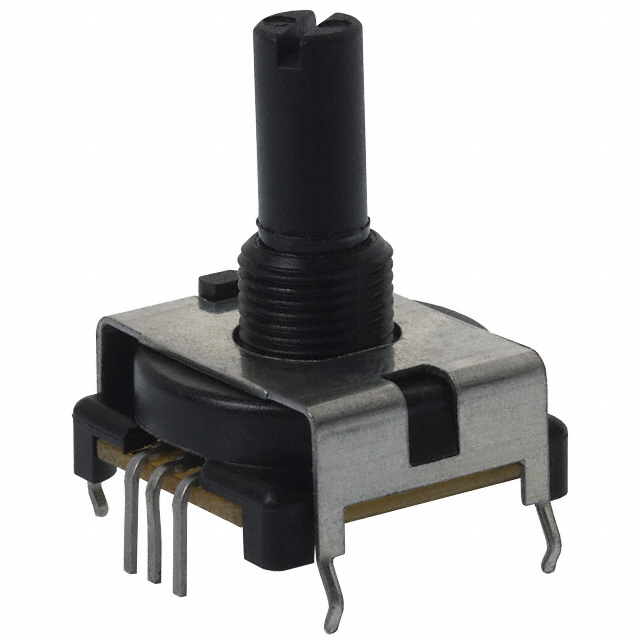

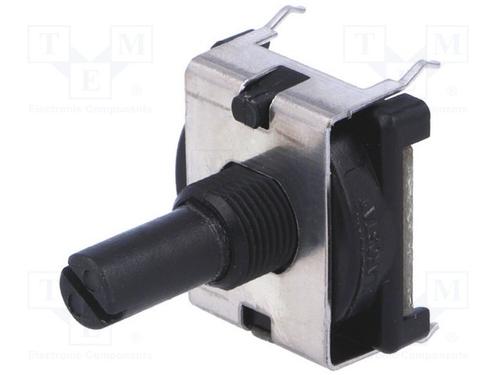

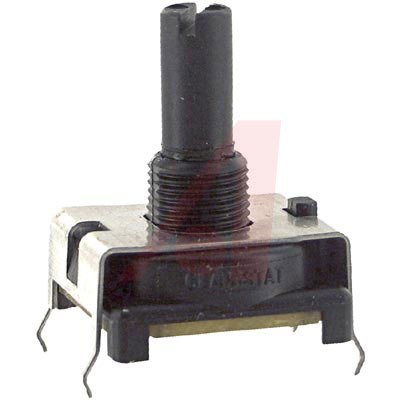

574SX1M48S503SD

Res Conductive Plastic POT 50KΩ 20% 0.5W1/2W 1Elec/1MechTurn 6.35mm 25.25 X 21.08 X 28.27mm Pin Panel Mount/Bracket Mount

578/574 Series, Precision and Commercial Potentiometer

This low-mount commercial potentiometer features conductive plastic elements, quiet electrical output, smooth feel, robust construction and has 50,000 turns rotational life. The units have linear taper, ±20% tolerance, 270° nominal effective electrical rotation and 300° nominal effective mechanical rotation and are not sealed for washing. The housing, bushing and shaft are made from black molded thermoplastic. The flatted shaft is 3/4" long. The wiper is a contact spring. Stocked units unitize three in-line solder pc-pins. The locating pin is at 9 o"clock.

.

* Shaft Length:** 3/4". The bushing mount unit is 0.5 watt @ 70°C. Other mechanical configurations, mounting brackets, taps, bushing and shaft lengths, resistance values, tapers and terminal configurations are available as special order items. No hardware is included.

These Series conductive plastic potentiometer work in a high performance, device. Offers low mounting profile, smooth feel, and robust construction with a thermoplastic housing, bushing, and shaft. With its compact size, rugged construction and advanced v
